Removal Procedure

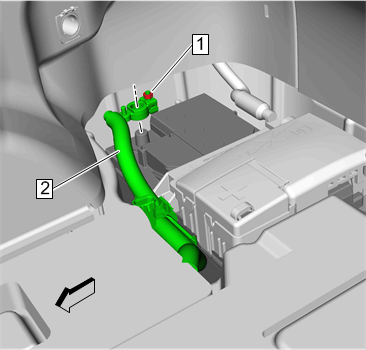

Disconnect the battery negative cable. (2) Battery Negative Cable Disconnection and Connection
- Quarter Lower Rear Trim Panel - Remove - Quarter Lower Rear Trim Panel Replacement
- Rear Compartment Side Trim Panel-Right Side - Remove - Rear Compartment Side Trim Replacement - Right Side (Coupe)Rear Compartment Side Trim Replacement - Right Side (Convertible)
- Remove the passenger seat. Front Seat Removal and Installation

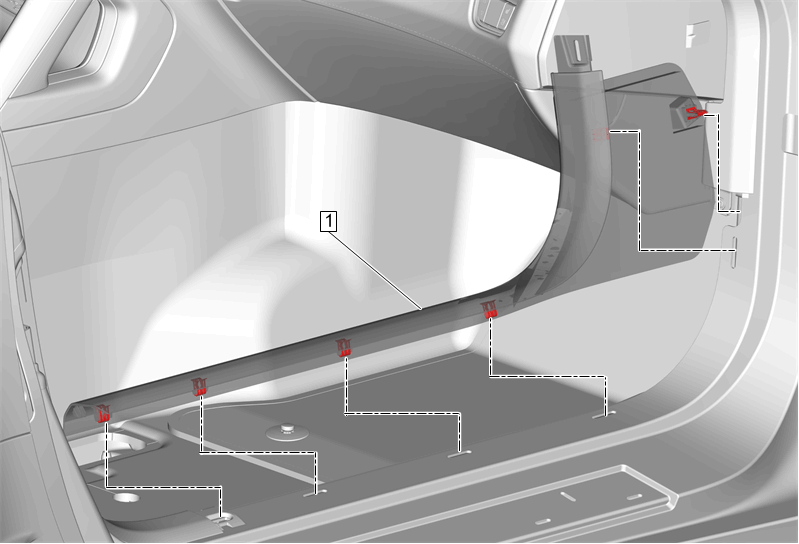

- Body Lock Pillar Trim Panel - Remove - Body Lock Pillar Trim Panel Replacement (Coupe)Body Lock Pillar Trim Panel Replacement (Convertible)
Front Side Door Sill Garnish Molding @ Right Side (1) - Remove - Front Side Door Sill Garnish Molding Replacement (Left Side)Front Side Door Sill Garnish Molding Replacement (Right Side)
Body Control Module Bracket (2) - Remove - Body Control Module Bracket Replacement
Radiator Surge Tank (1) - Remove - Radiator Surge Tank Replacement (LT1, LT4)Radiator Surge Tank Replacement (LT5)

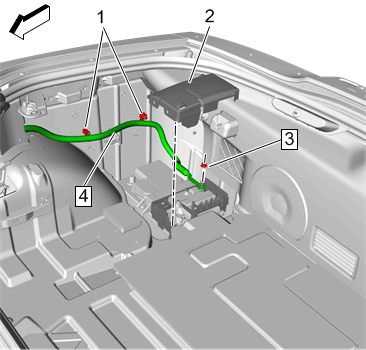

Power Distributor Fuse Block Cover (2) - Remove
- Rear Body Fuse Block Nut (3) - Remove
- Battery Positive Cable Retainer (1) - Disengage [2x]
- Battery Positive Cable (4) - Remove

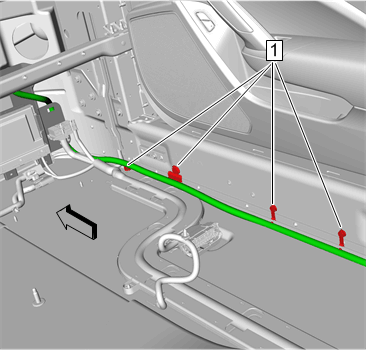

Battery Positive Cable Retainer (1) - Disengage [10x]

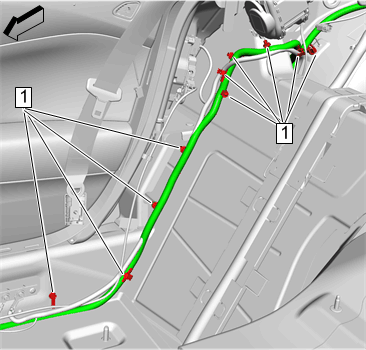

Battery Positive Cable Retainer (1) - Disengage [4x]

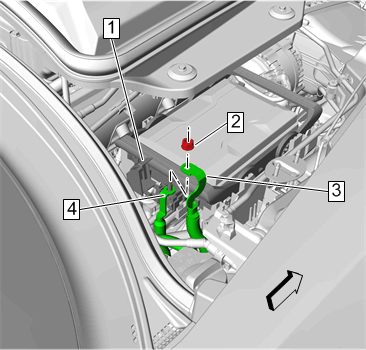

Accessory Wiring Junction Block Cover (1) - Open
- Engine Wiring Harness Junction Block Nut (2) - Remove
- Starter Solenoid Cable (3) - Remove
- Battery Positive Cable (4) - Remove
Battery Positive Cable Retainer (2) - Disengage

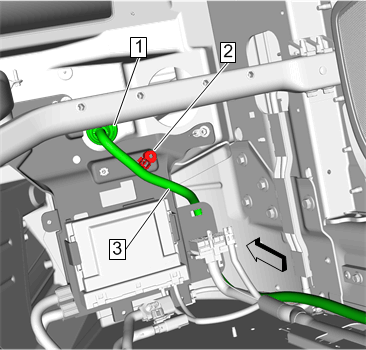

- Remove the pass-through grommet (1) and feed the battery positive cable into the passenger compartment.
- Remove the battery positive cable from the vehicle. (3)
