Installation Procedure

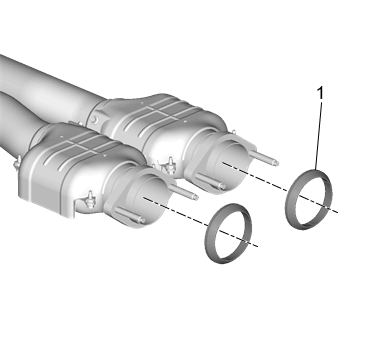

  1. GM4883272Courtesy of GENERAL MOTORS COMPANY

    Exhaust System Seal (1) - Install a NEW seal. [2x]

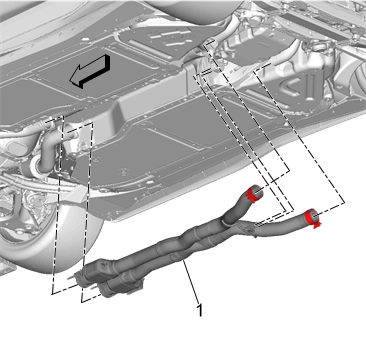

  2. GM4882857Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the exhaust intermediate pipe.

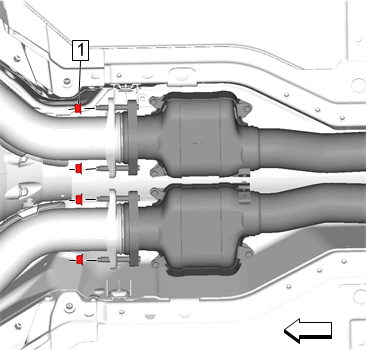

  3. GM4882843Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Exhaust System Intermediate Nut (1) - Install and tighten [4x] 22 N.m (16 lb ft)

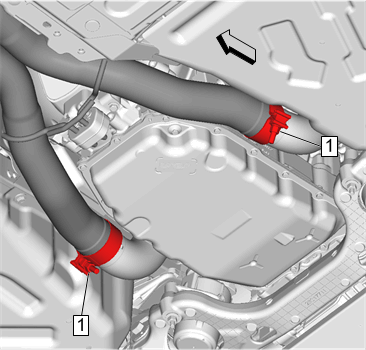

  4. GM4882853Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp (1) - Tighten [2x] 44 N.m (32 lb ft)

  5. Floor Panel Tunnel Panel Front Reinforcement - Install - Floor Panel Tunnel Panel Reinforcement Replacement
