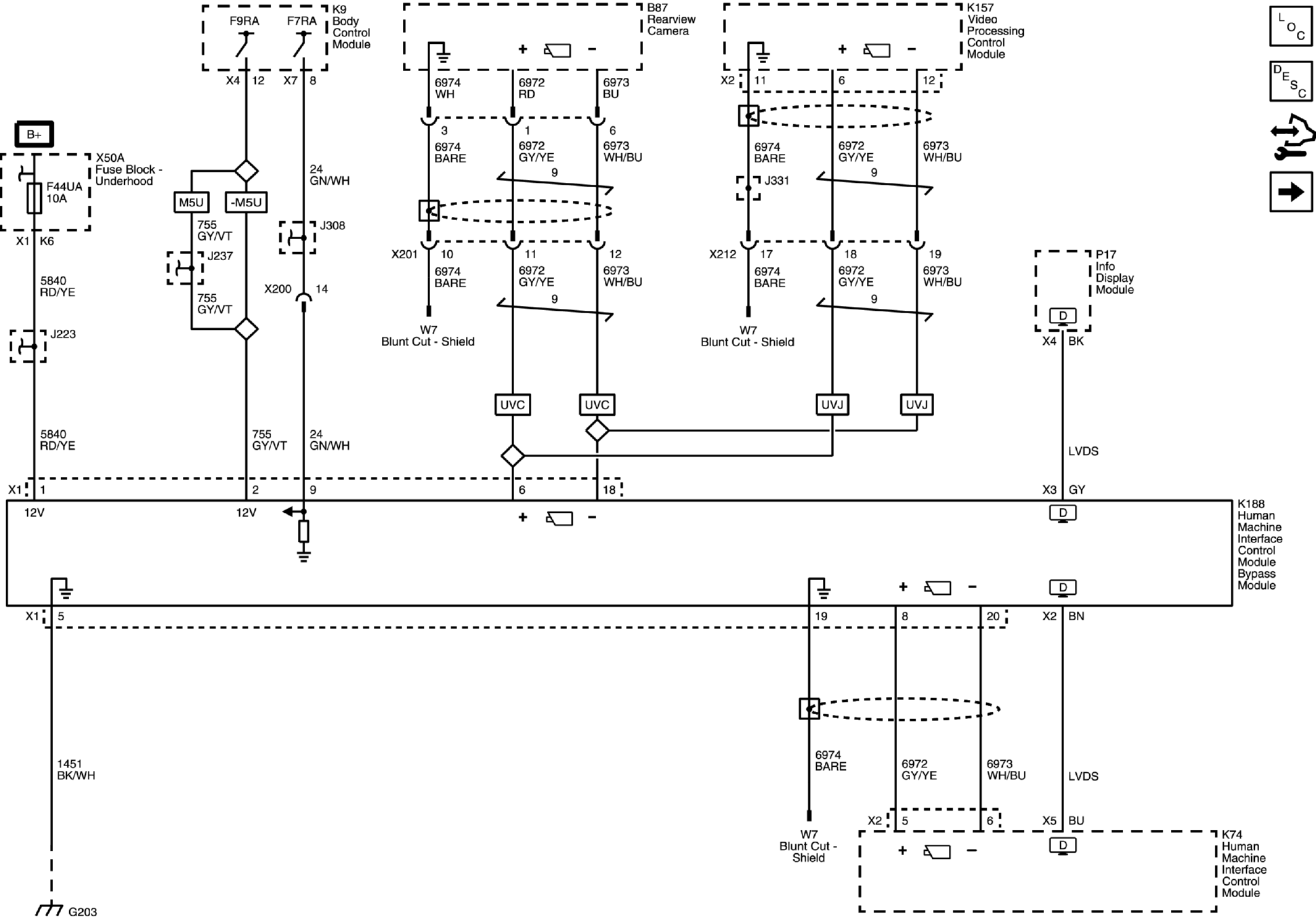

HMI Control Module Bypass Module (UVC/UVJ-EXP)
HMI Control Module Bypass Module (UVC/UVJ-EXP)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
