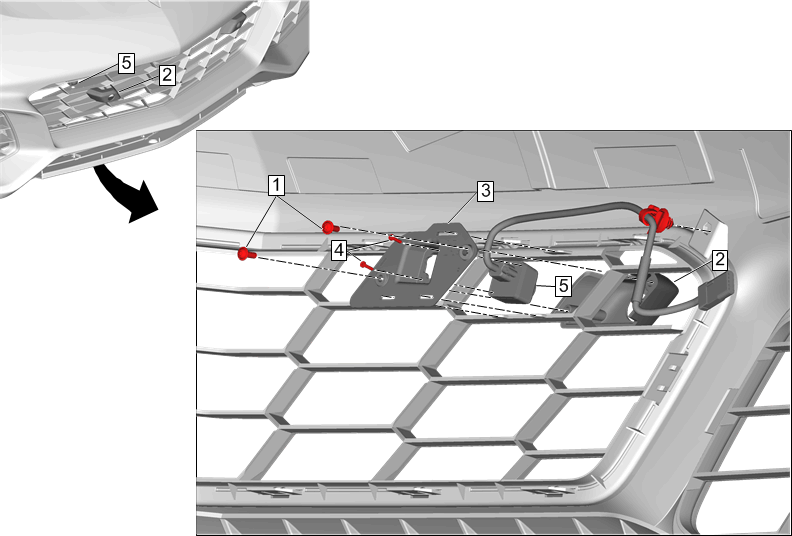

Front View Driver Information Camera Replacement (With ZR1)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Replacement (With ZR1) |
|
| 1 | Front View Camera Bolt[2x]
CAUTION:
Tighten 2.5N.m (22 lb in) |
| 2 | Front View Driver Information Camera Bezel |
| 3 | Front View Driver Information Camera Bracket |
| 4 | Front View Driver Information Camera Retainer [2x] Tighten 1N.m (9 lb in) |
| 5 | Front View Driver Information Camera Procedure
|
