Tow Vehicle Electrical Receptacle Replacement

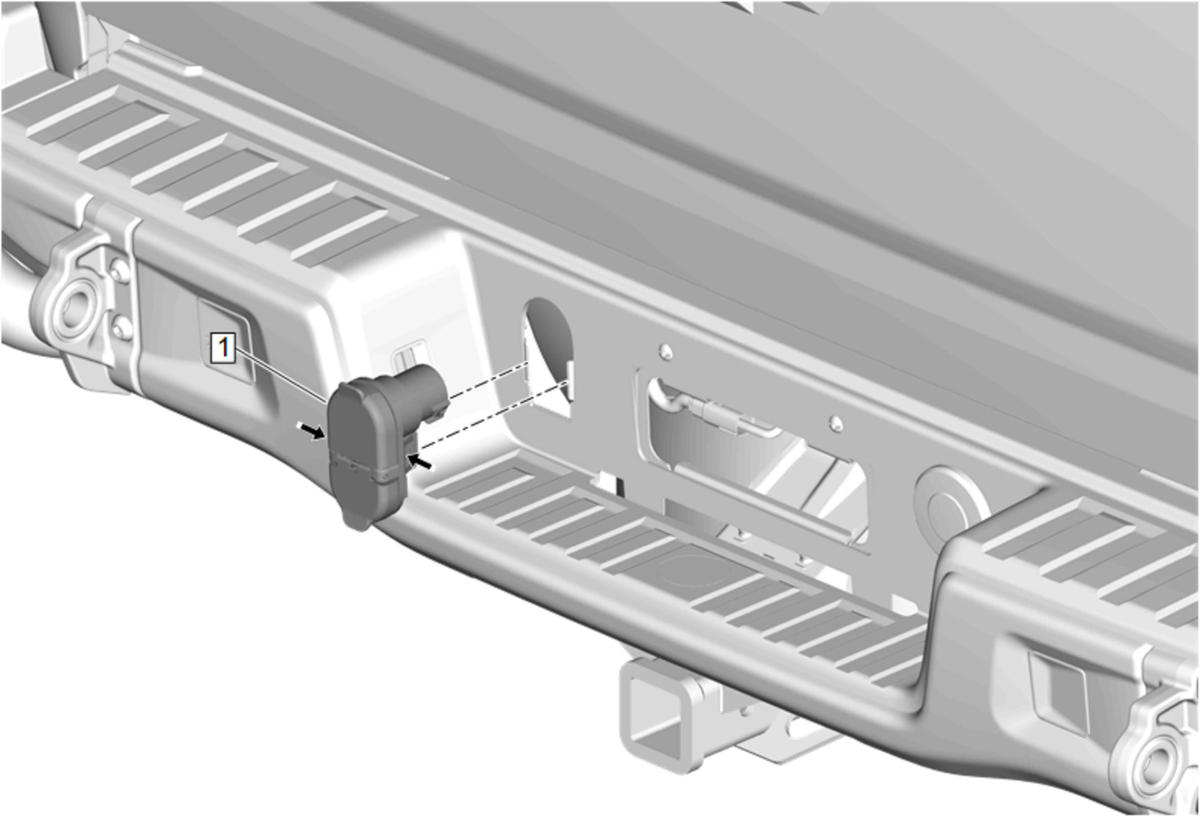

GM5146030Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Tow Vehicle Electrical Receptacle

Procedure

  1. Release the retaining tabs.
  2. Disconnect the electrical connector.
