Rear Sliding Window Replacement

Courtesy of GENERAL MOTORS COMPANY

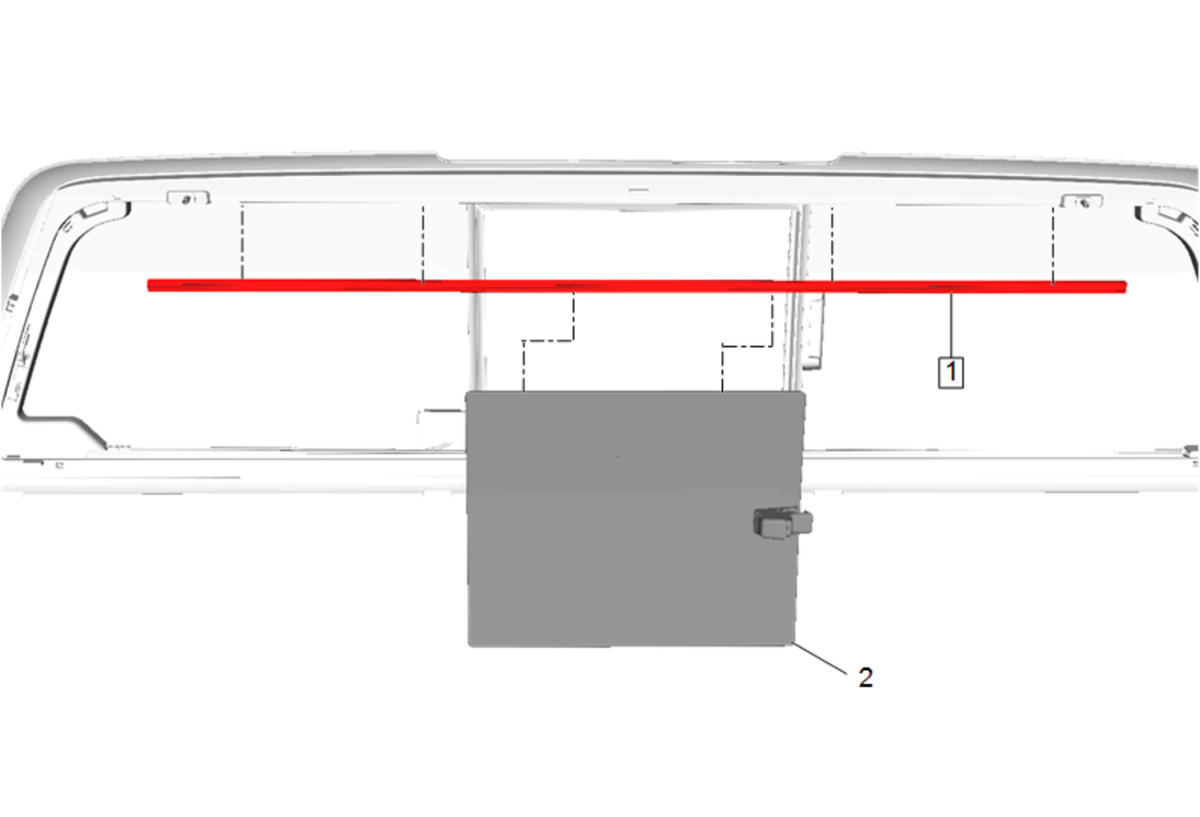

Callout	Component Name
Preliminary Procedures Disconnect the electrical connector. Rear Window Replacement
1	Rear Sliding Window Upper guide Procedure Open the rear sliding window. From the passenger side, pull down and slide the rear sliding window upper guide from between the frame and sliding window.
2	Rear Sliding Window Procedure Remove the window from the upper frame by pushing upward on the window, pulling outward and down on the bottom of the window. NOTE: Ensure proper operation of the rear sliding window.

Callout

Component Name

Preliminary Procedures

Disconnect the electrical connector.
Rear Window Replacement

Rear Sliding Window Upper guide

Procedure

Open the rear sliding window.
From the passenger side, pull down and slide the rear sliding window upper guide from between the frame and sliding window.

Rear Sliding Window
Procedure
Remove the window from the upper frame by pushing upward on the window, pulling outward and down on the bottom of the window.

NOTE:

Ensure proper operation of the rear sliding window.
