Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Prepare the brake caliper bracket bolts and the bracket threaded holes for assembly:
- Thoroughly clean the residue from the bolt threads with denatured alcohol or equivalent and allow to dry.
- Thoroughly clean the residue from the threaded holes with denatured alcohol or equivalent and allow to dry.
- Apply threadlocker to 2/3 of the threaded length of the bolts. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the threadlocker along the length of the filled area of the bolts.
- Allow the threadlocker to cure approximately 10 minutes before installation.
Courtesy of GENERAL MOTORS COMPANY

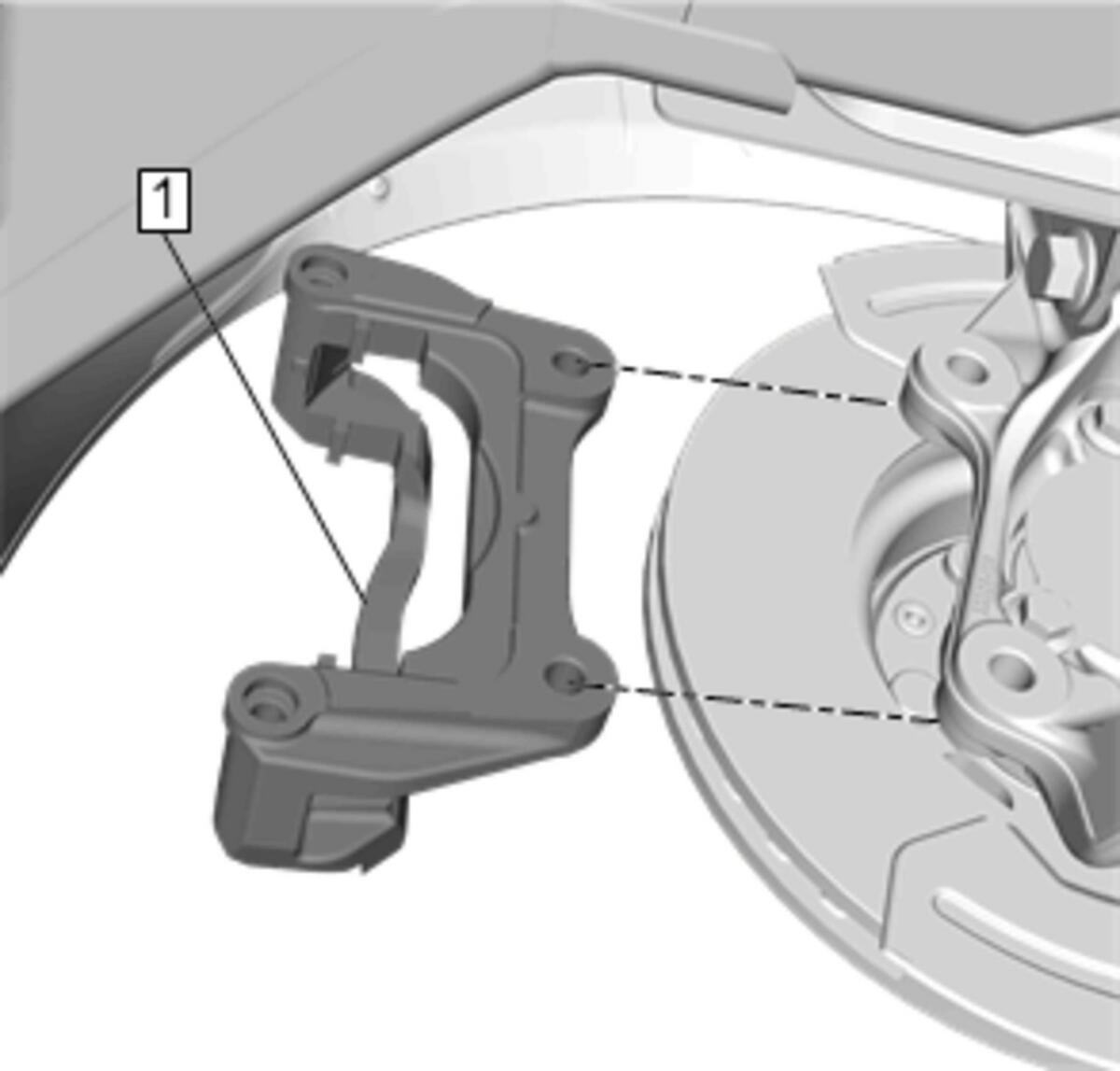

Front Brake Caliper Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

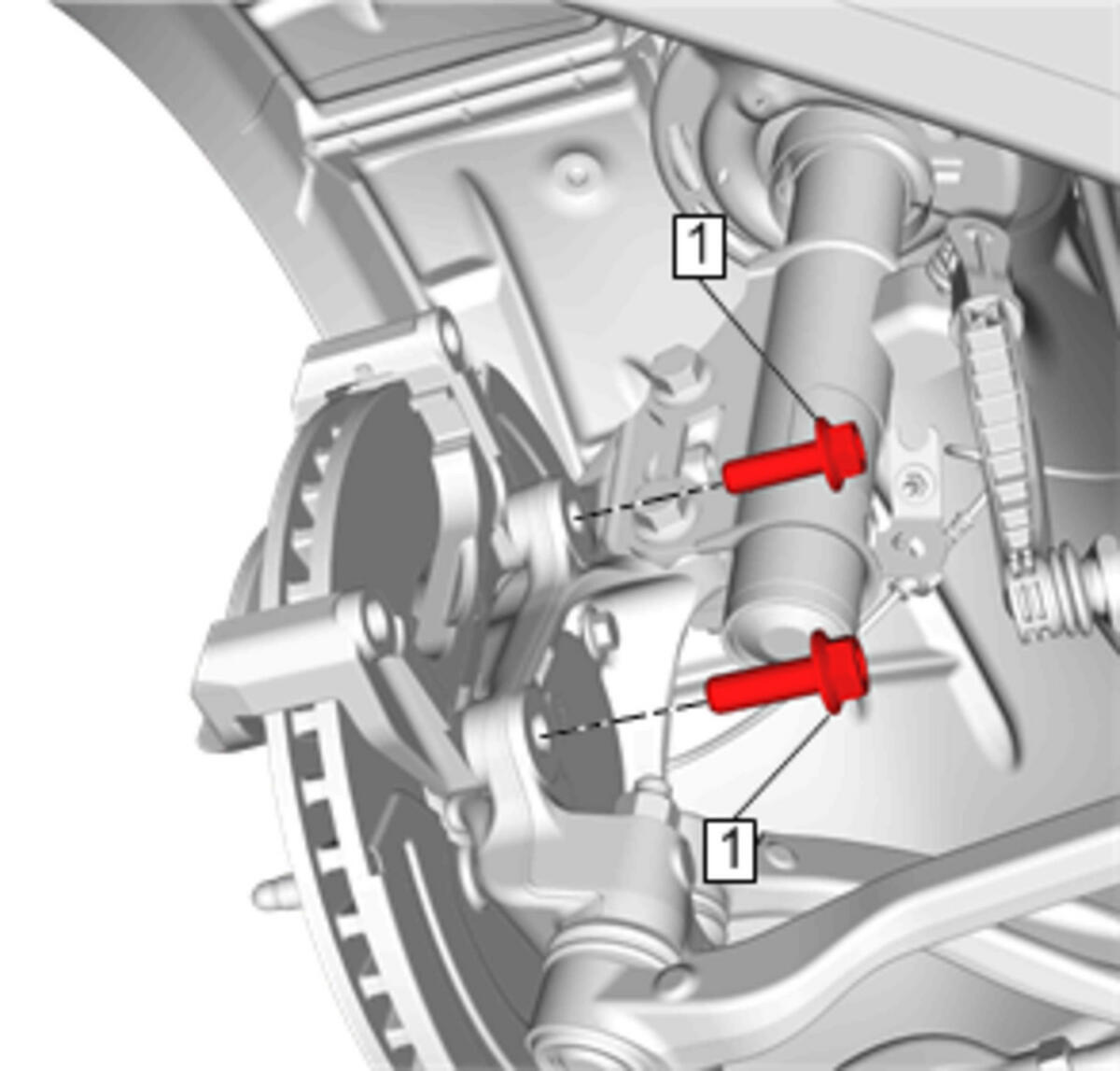

Brake Caliper Bracket Bolt (1) - Install and tighten [2x]
- First Pass:150 N.m (111 lb ft)
- Final Pass:15-30 degrees
Courtesy of GENERAL MOTORS COMPANY

Brake Caliper Guide Pin Seal (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Brake Caliper Guide Pin (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

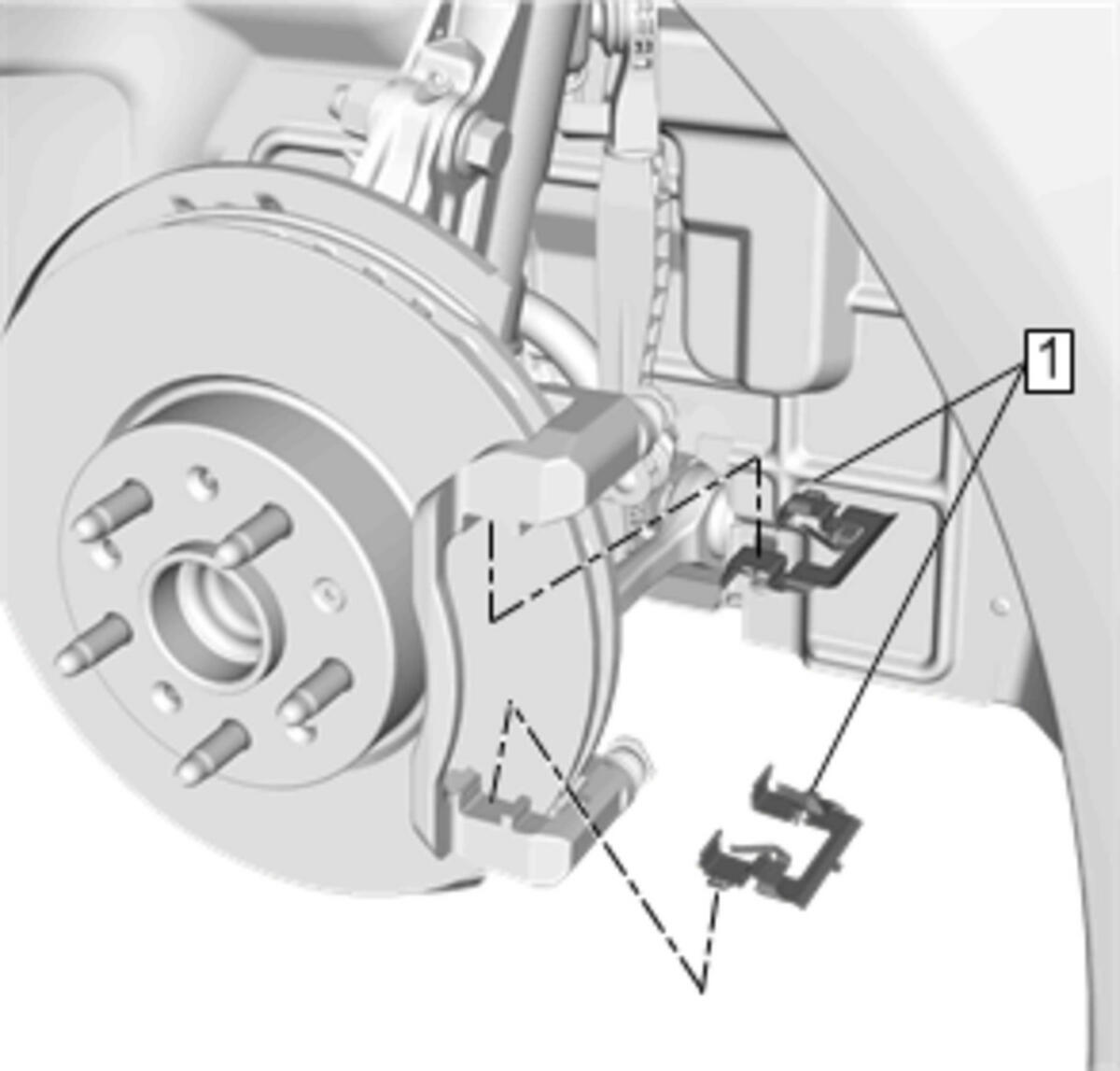

Disc Brake Pad Spring (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

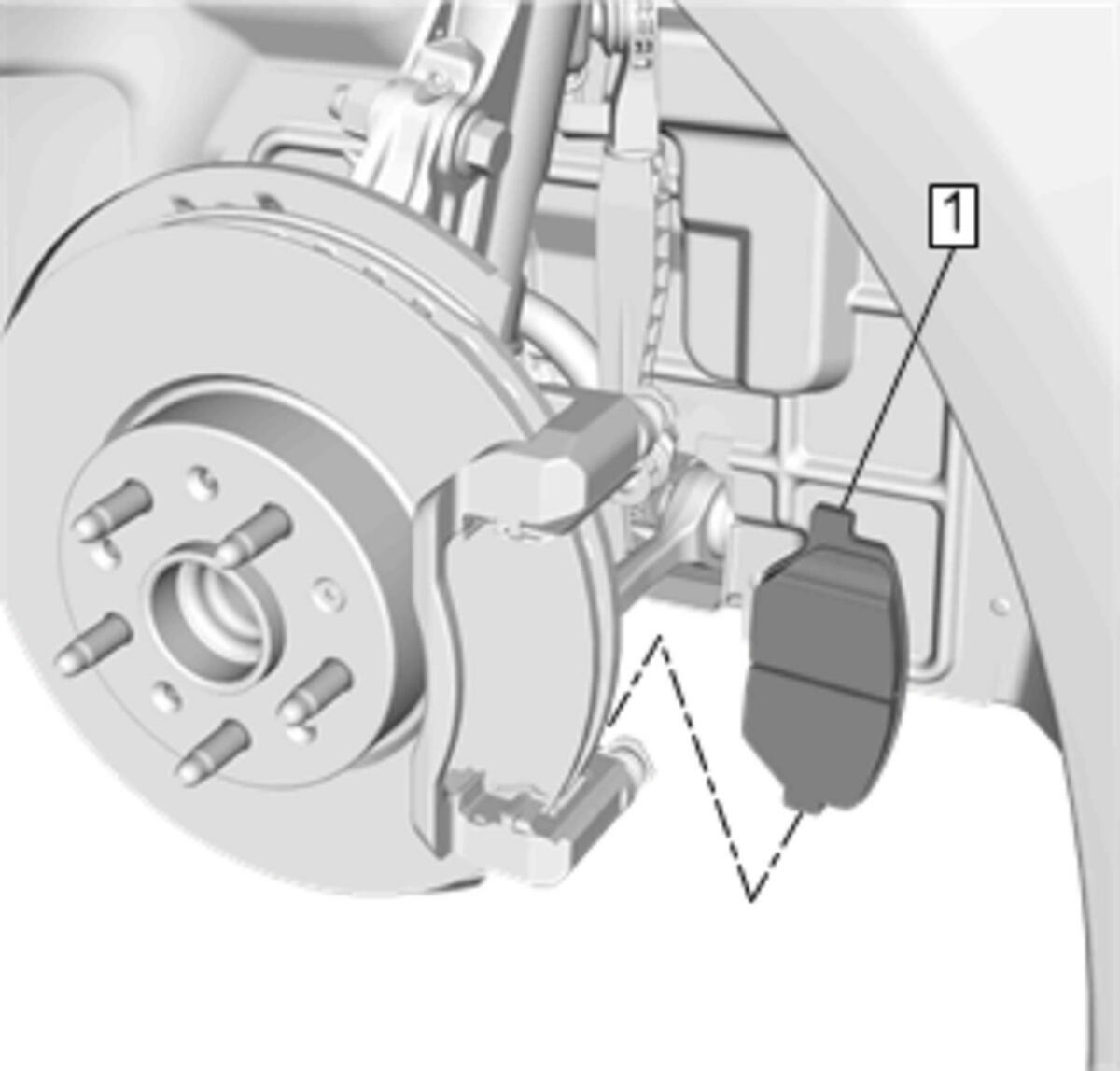

Inner Disc Brake Pad (1) - Install
Courtesy of GENERAL MOTORS COMPANY

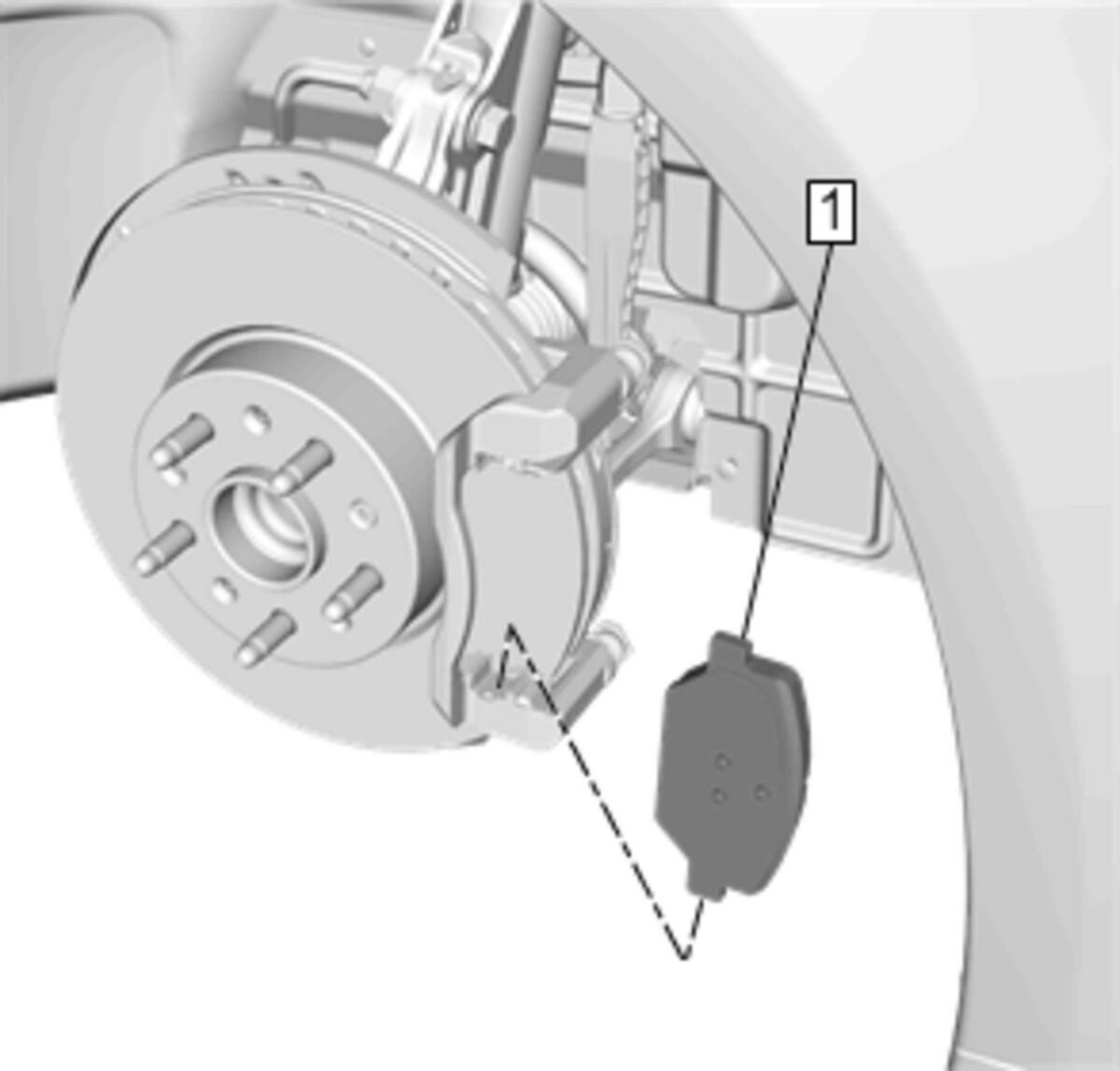

Outer Disc Brake Pad (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Brake Caliper (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Brake Caliper Guide Pin Bolt (1) - Install and tighten [2x] 47 N.m (35 lb ft)
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
