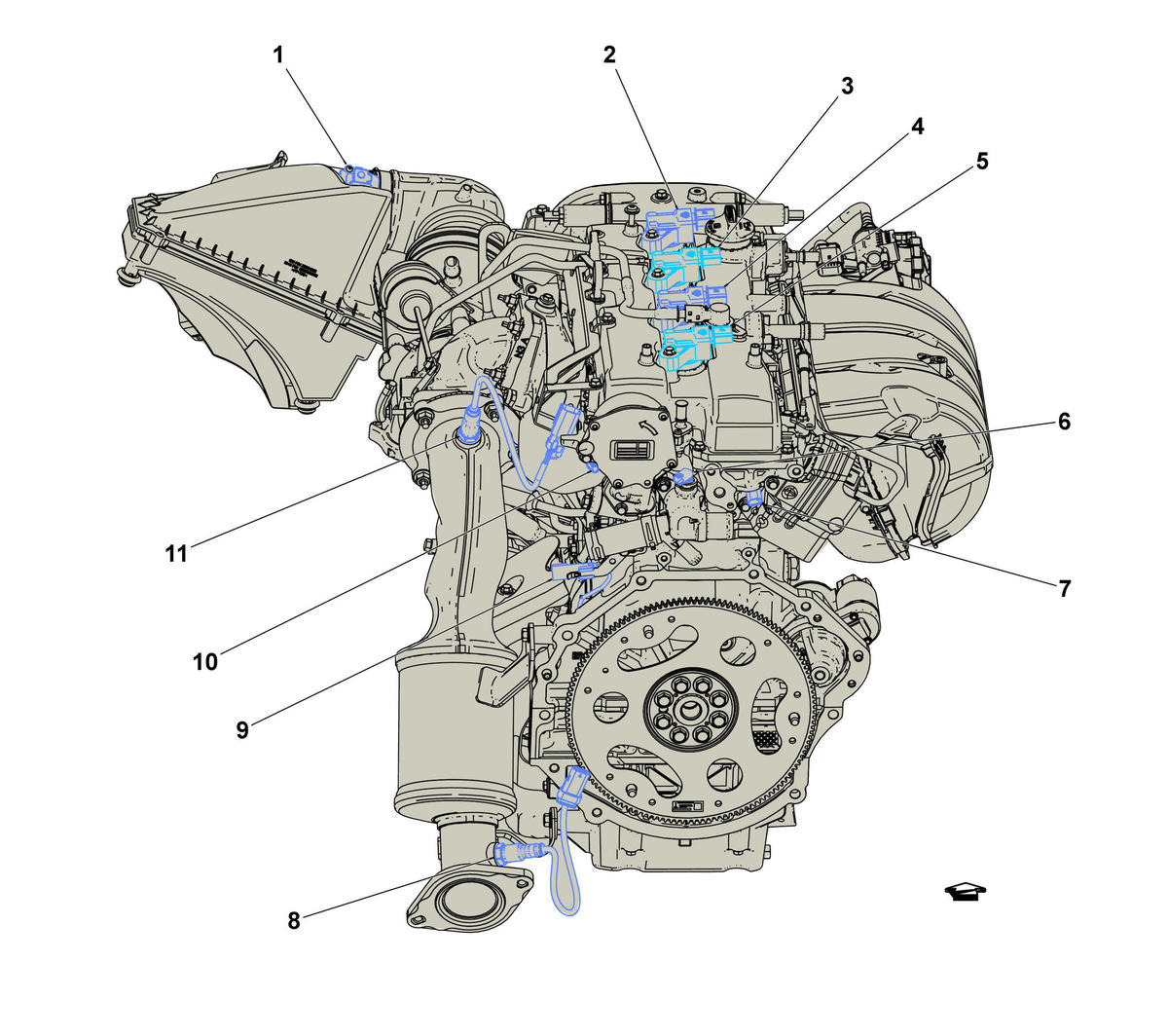

Engine Components - Rear (LTG)

GM4910840Courtesy of GENERAL MOTORS COMPANY
Items
  1. 1. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor
  2. 2. T8A Ignition Coil 1 T8A Ignition Coil 1 (LGX)T8A Ignition Coil 1 (LT1/LT4)T8A Ignition Coil 1 (LTG)
  3. 3. T8B Ignition Coil 2 T8B Ignition Coil 2 (LGX)T8B Ignition Coil 2 (LT1/LT4)T8B Ignition Coil 2 (LTG)
  4. 4. T8C Ignition Coil 3 T8C Ignition Coil 3 (LGX)T8C Ignition Coil 3 (LT1/LT4)T8C Ignition Coil 3 (LTG)
  5. 5. T8D Ignition Coil 4 T8D Ignition Coil 4 (LGX)T8D Ignition Coil 4 (LT1/LT4)T8D Ignition Coil 4 (LTG)
  6. 6. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LGX)B34 Engine Coolant Temperature Sensor (LT1/LT4)B34 Engine Coolant Temperature Sensor (LTG)
  7. 7. B23F Camshaft Position Sensor - Intake (LTG) B23F Camshaft Position Sensor - Intake (LTG)
  8. 8. B52B Heated Oxygen Sensor 2 (LTG) B52B Heated Oxygen Sensor 2 (LTG)
  9. 9. Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LT1/LT4)
  10. 10. B23E Camshaft Position Sensor - Exhaust (LTG) B23E Camshaft Position Sensor - Exhaust (LTG)
  11. 11. B52A Heated Oxygen Sensor 1 (LTG) B52A Heated Oxygen Sensor 1 (LTG)
