Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

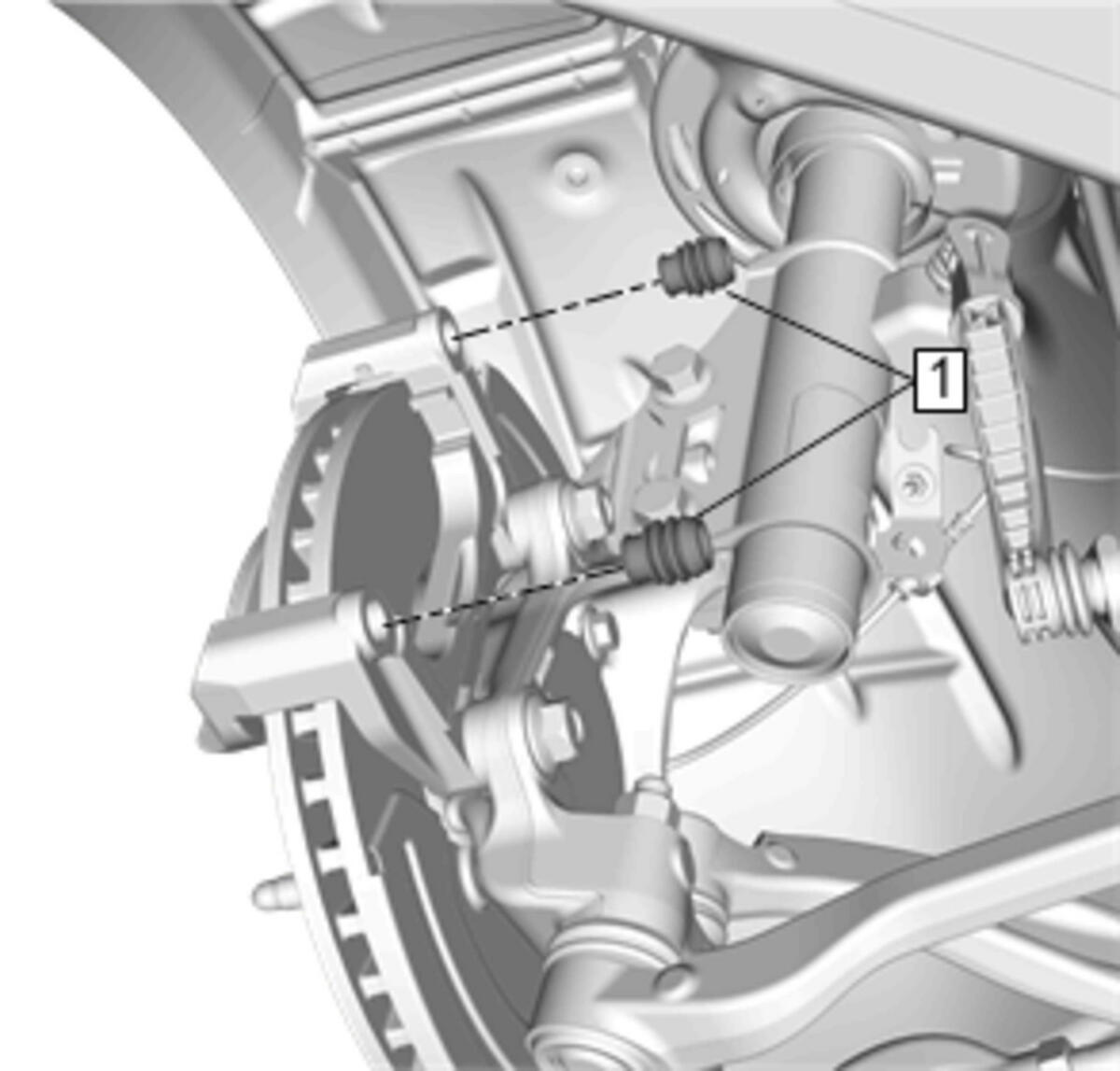

Brake Caliper Guide Pin Seal (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

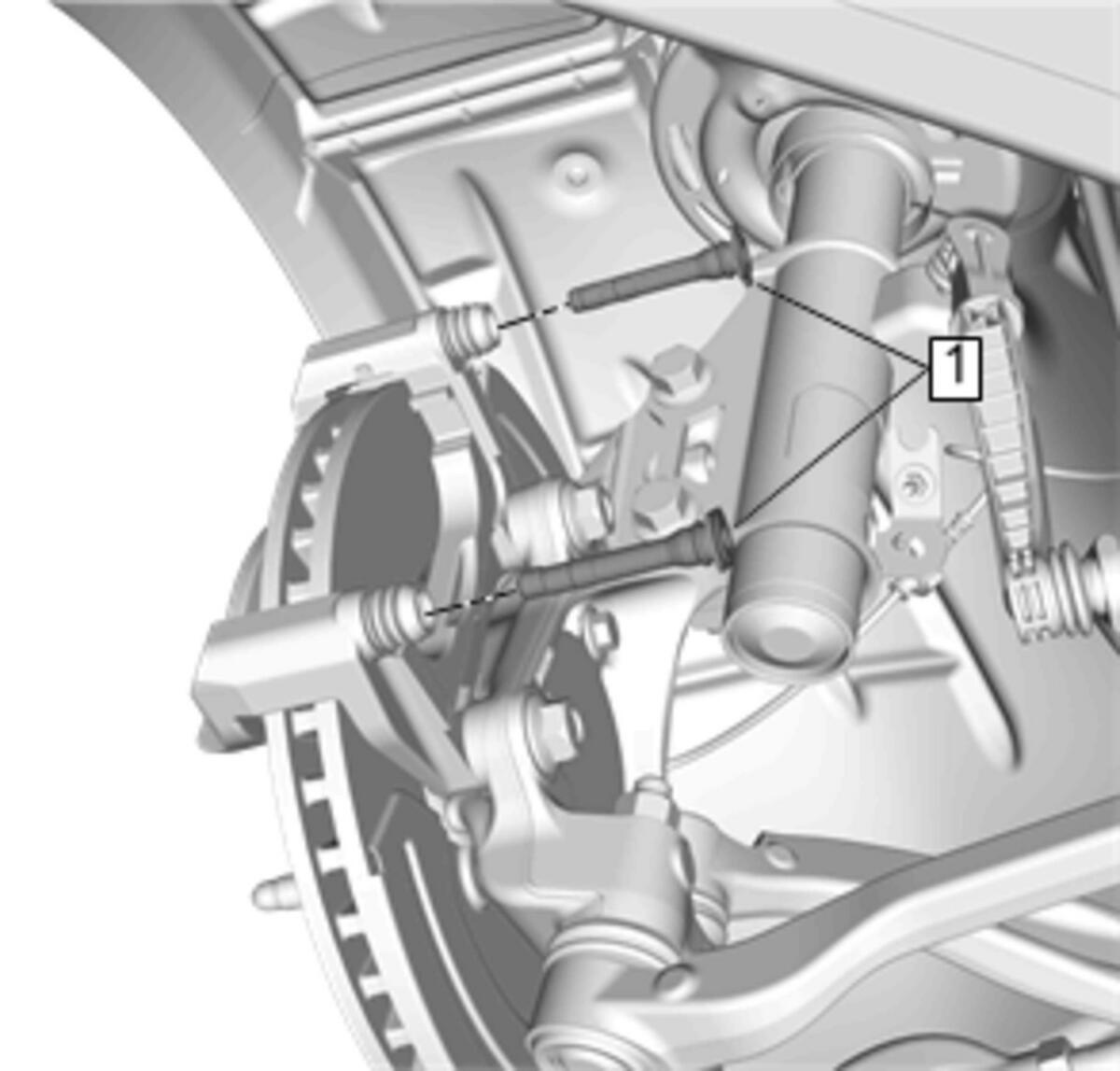

Brake Caliper Guide Pin (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

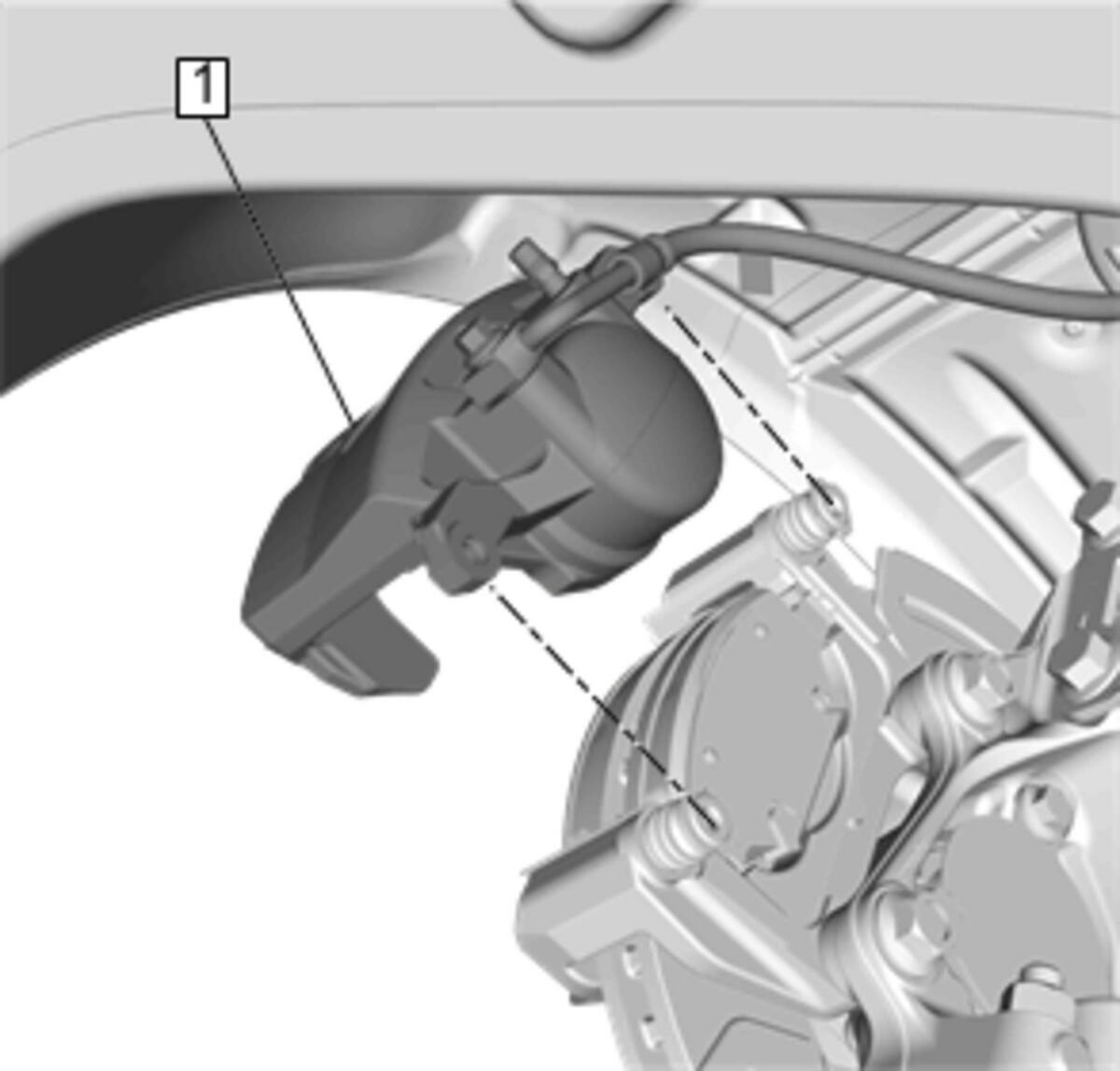

Brake Caliper (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

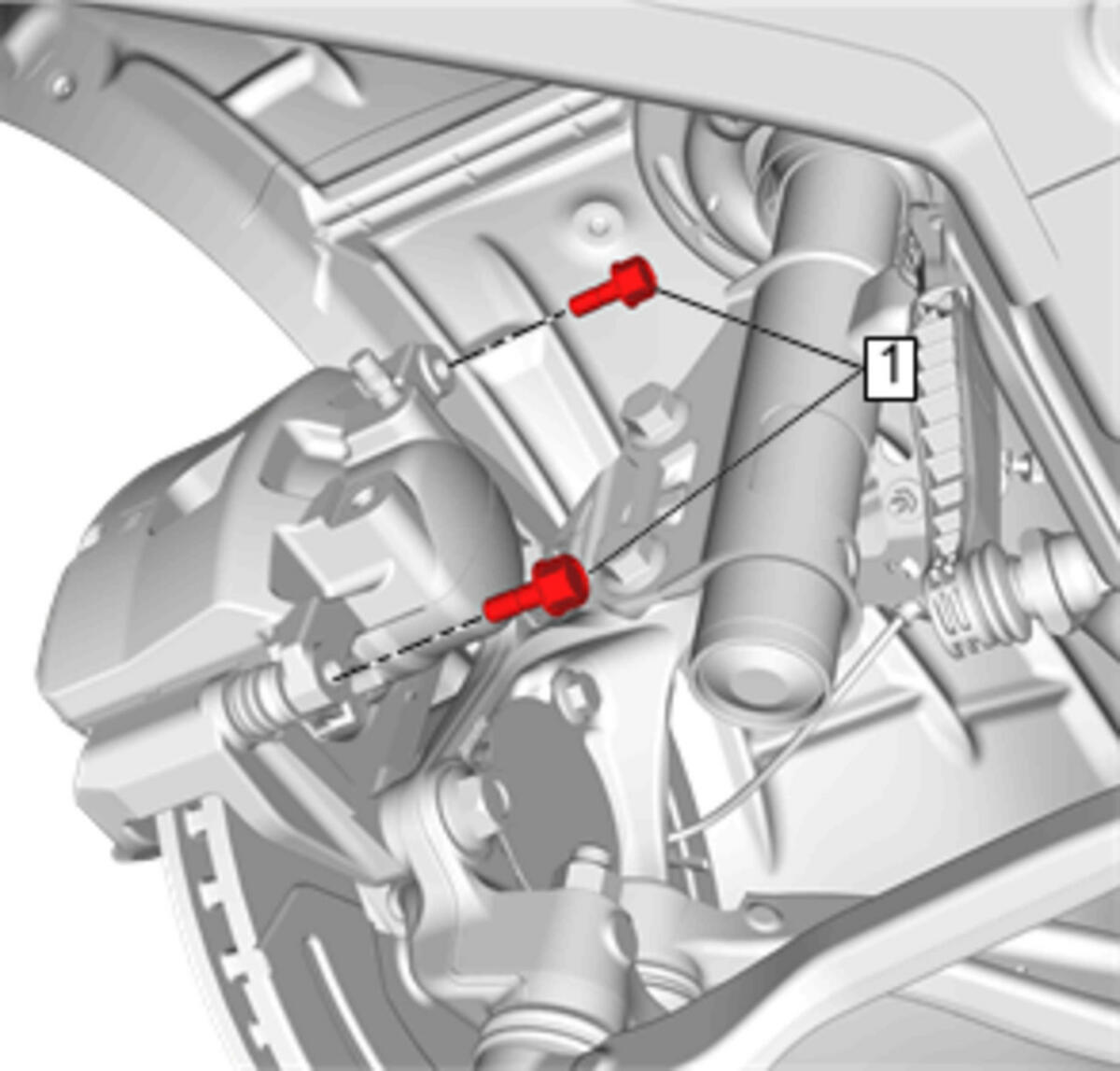

Brake Caliper Guide Pin Bolt (1) - Install and tighten [2x] 47 N.m (35 lb ft)
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
