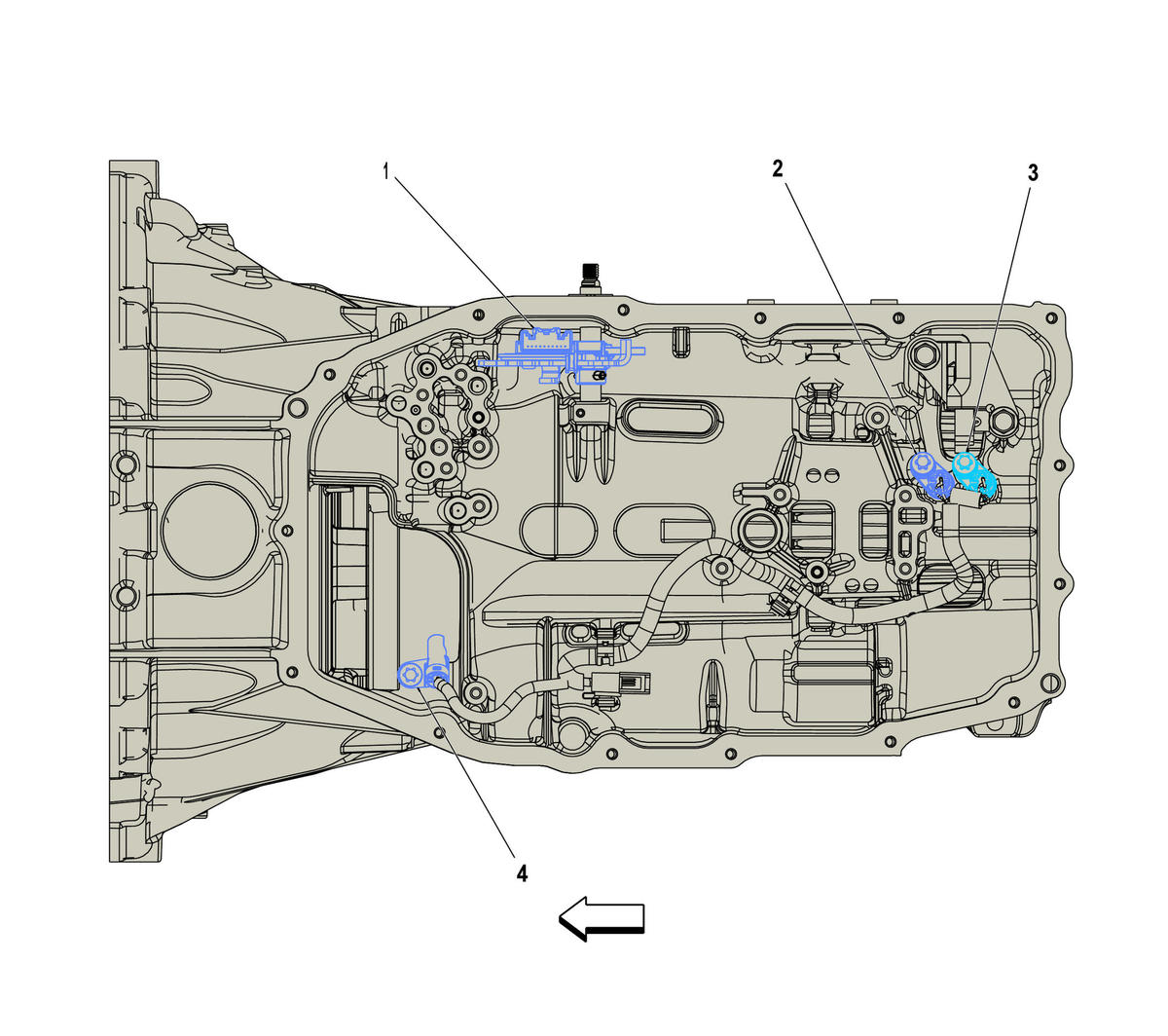

Automatic Transmission Case Components (M5T)

Courtesy of GENERAL MOTORS COMPANY

Items
1. B15 Transmission Internal Mode Switch (M5T) B15 Transmission Internal Mode Switch (M5T)
2. B14D Transmission Intermediate Shaft Speed Sensor (M5T)
3. B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (MGL/MF6)B14A Transmission Output Shaft Speed Sensor (MN6)
4. B14C Transmission Input Shaft Speed Sensor (MF6/MGL/M5T) B14C Transmission Input Shaft Speed Sensor (M5T)B14C Transmission Input Shaft Speed Sensor (MGL/MF6)
