Below Engine Compartment Components

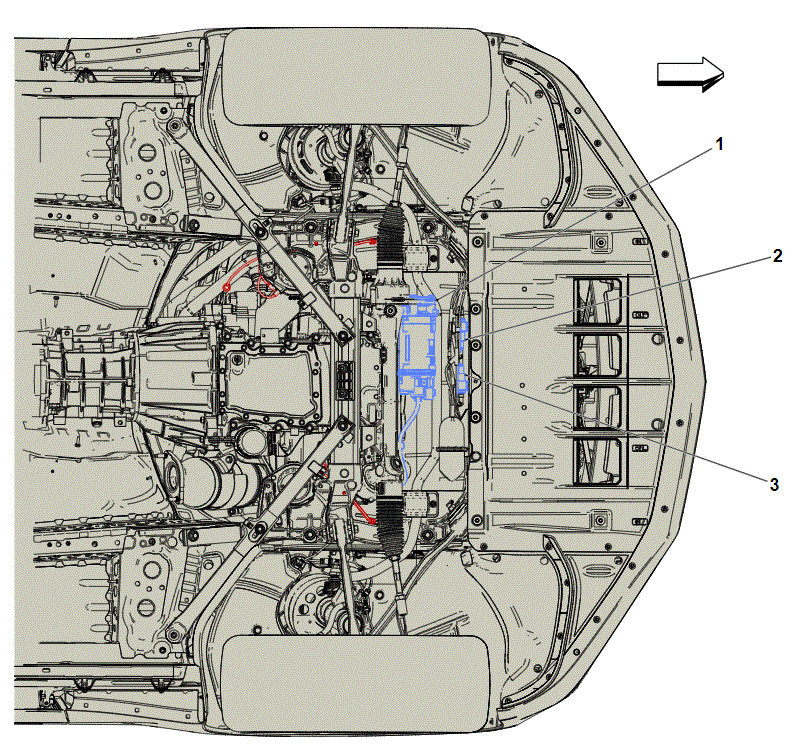

GM4910822Courtesy of GENERAL MOTORS COMPANY
Below Engine Compartment Components

ITEMS
1. K43 Power Steering Control Module
2. Q80L Engine Mount Solenoid Valve - Left (LTG)
3. Q80R Engine Mount Solenoid Valve - Right (LTG)
