Fuel Pump Power Control Module Replacement

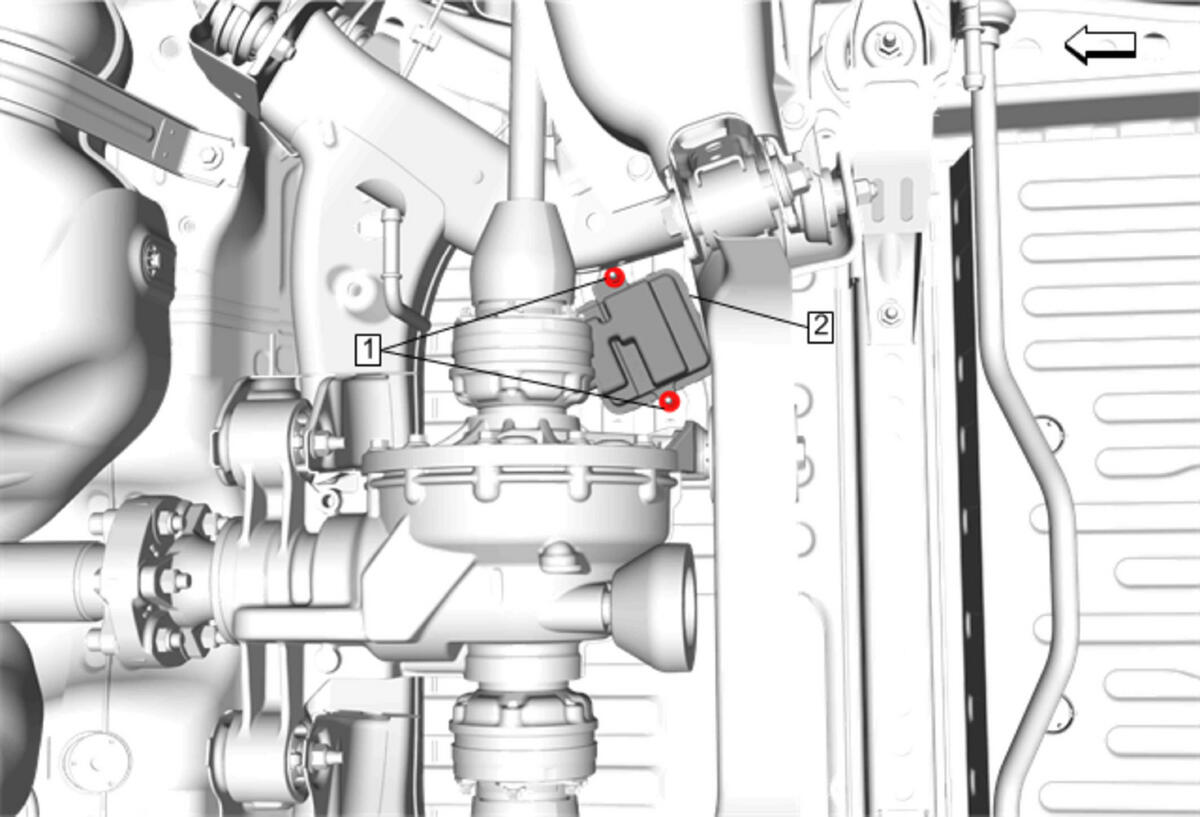

GM4174508Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle (Base) , or Lifting and Jacking the Vehicle (ZL1) , or Lifting and Jacking the Vehicle (Convertible) .
1 Fuel Pump Power Control Module Fastener [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Fuel Pump Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Refer to: Fuel Pump Power Control Module Programming and Setup
