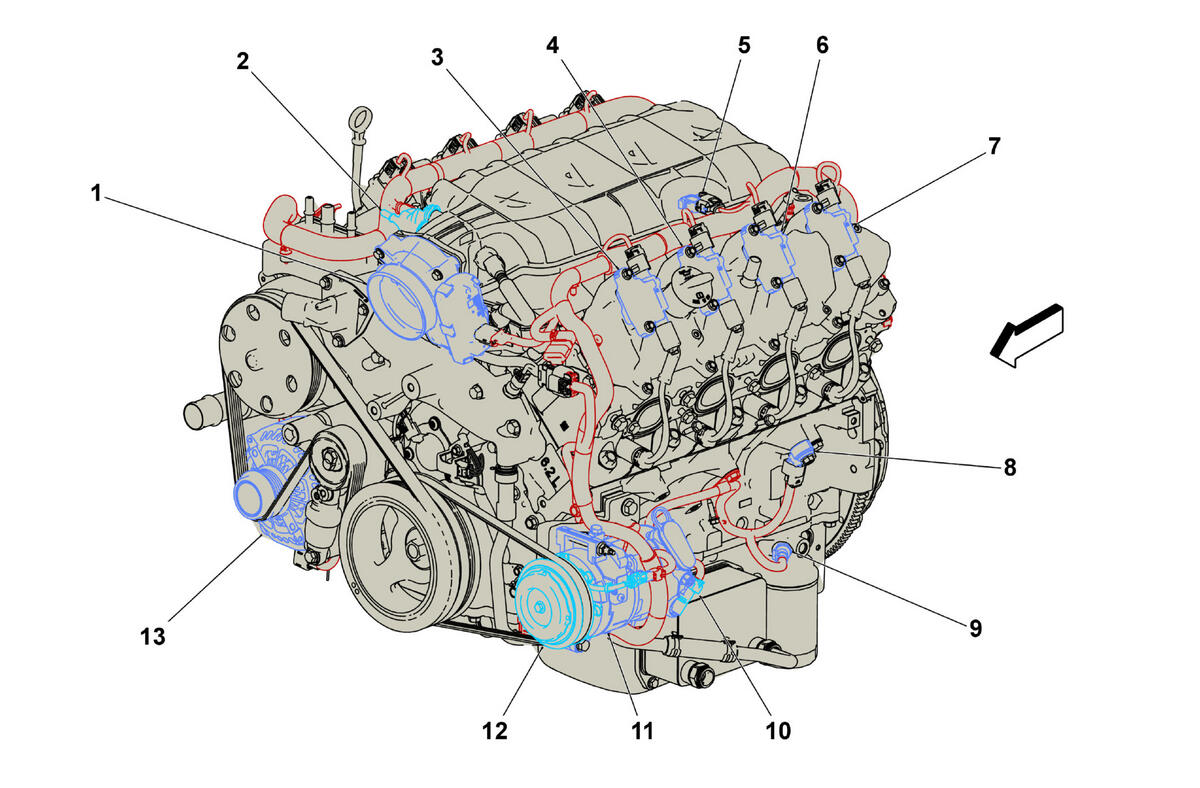

| 1. Q38 Throttle Body Q38 Throttle Body |
| 2. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 3. T8A Ignition Coil 1 T8A Ignition Coil 1 (LGX)T8A Ignition Coil 1 (LT1/LT4)T8A Ignition Coil 1 (LTG) |
| 4. T8C Ignition Coil 3 T8C Ignition Coil 3 (LGX)T8C Ignition Coil 3 (LT1/LT4)T8C Ignition Coil 3 (LTG) |
| 5. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LGX)B74 Manifold Absolute Pressure Sensor (LT1)B74 Manifold Absolute Pressure Sensor (LTG) |
| 6. T8E Ignition Coil 5 (LGX/LT1/LT4) T8E Ignition Coil 5 (LGX)T8E Ignition Coil 5 (LT1/LT4) |
| 7. T8G Ignition Coil 7 (LT1/LT4) T8G Ignition Coil 7 (LT1/LT4) |
| 8. B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 9. B36 Engine Oil Temperature Sensor (LT1/LT4) B36 Engine Oil Temperature Sensor (LT1/LT4) |
| 10. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 11. G1 A/C Compressor |
| 12. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 13. G13 Generator G13 Generator X1G13 Generator X2 |
