Strut, Strut Component, or Spring Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

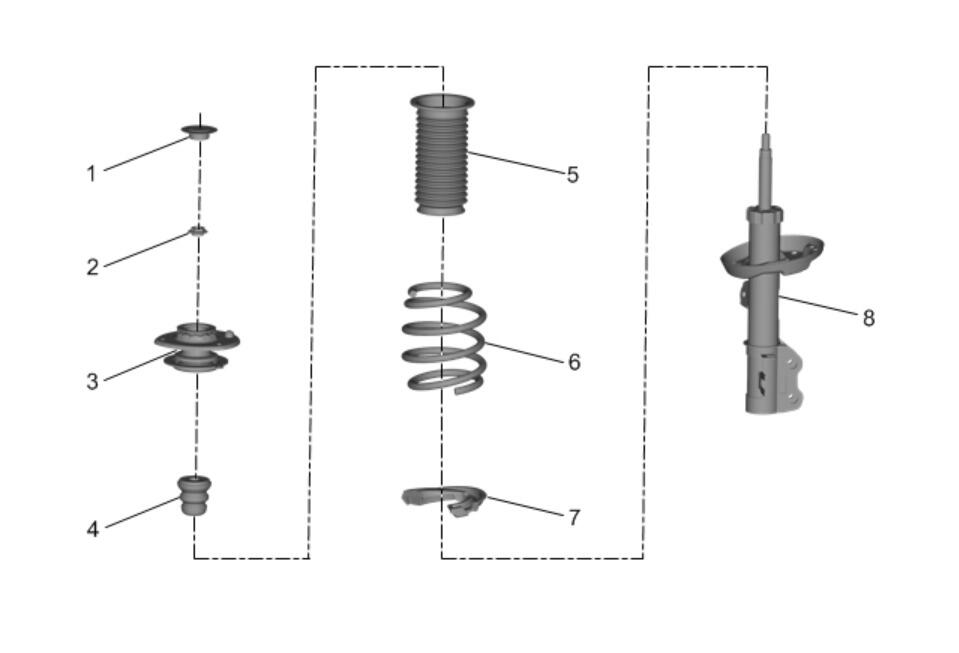

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Strut Assembly Removal and Installation To prevent personal injury and/or component damage, use the proper tools to support and compress the coil spring prior to removal of the strut shaft nut when removing the coil spring. The coil spring is under extreme pressure and can become a projectile should the spring separate from the strut before all of the tension is relieved. |
|
| 1 | Front Suspension Strut Cartridge Upper Cover |
| 2 | Front Suspension Strut Upper Mounting Nut
CAUTION:
Refer to Fastener Caution . Procedure
Tighten 85 N.m (63 lb ft) Special Tools CH-49375 Strut Wrench Equivalent regional tools: Special Tools |
| 3 | Front Suspension Strut Mount |
| 4 | Front Suspension Strut Bumper |
| 5 | Front Strut Boot |
| 6 | Front Coil Spring |
| 7 | Front Coil Spring Lower Insulator |
| 8 | Front Suspension Strut |
