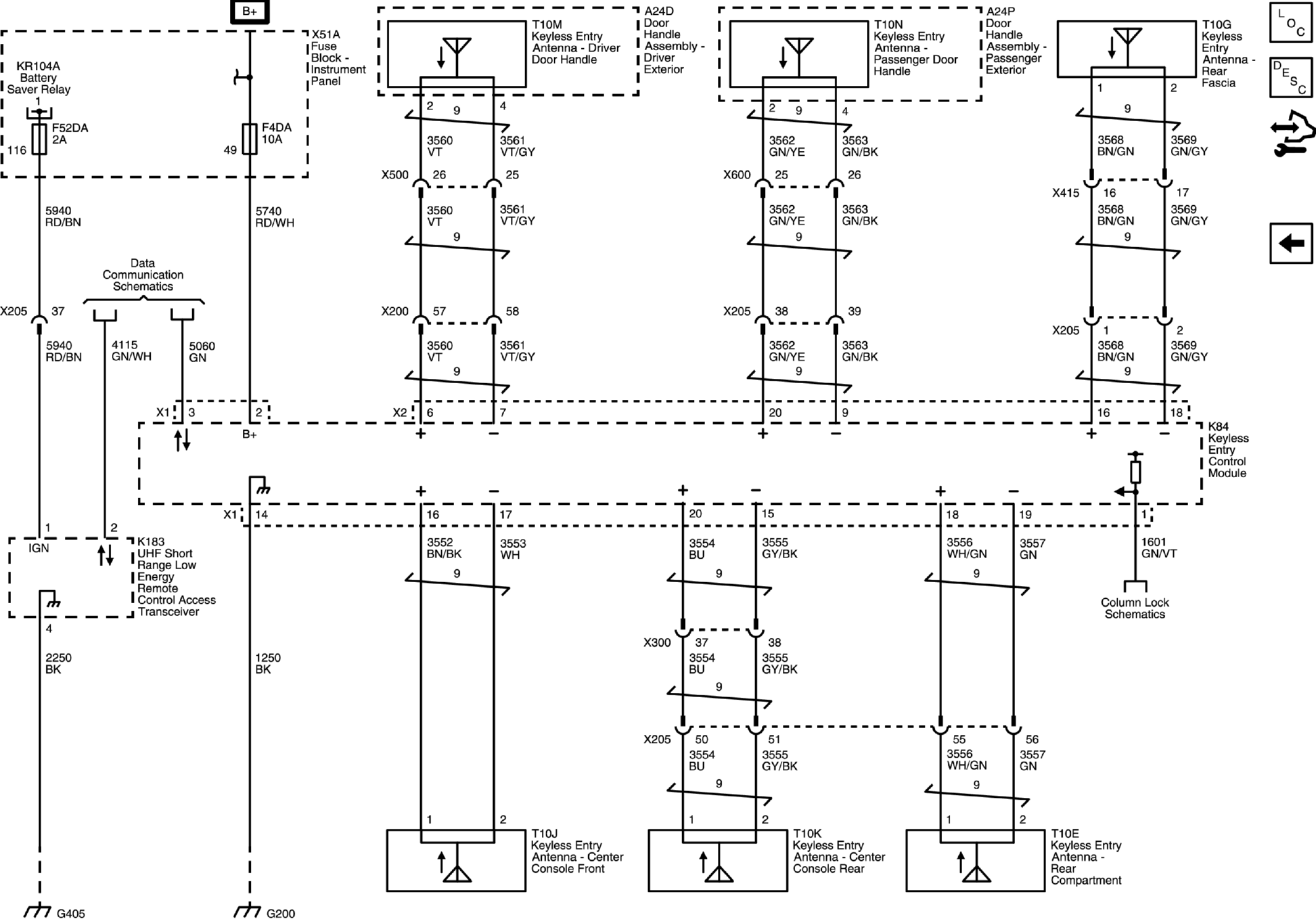

Keyless Entry - Passive and Keyless Start

WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.
GM4811673Courtesy of GENERAL MOTORS COMPANY
