Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

Battery Negative Cable - Disconnect - Battery Negative Cable Disconnection and Connection
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Assembly (1) - Remove - Instrument Panel Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator (3) - Remove - Instrument Panel Lower Trim Panel Insulator Replacement
Courtesy of GENERAL MOTORS COMPANY

Radio Assembly Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Remove the ground nut (1) and ground wire.
Remove the ground bolt (2) and ground wire.
Unclip and disconnect the I/P main harness connector (3).
Disconnect the coax antenna connectors (4).
Unclip the passenger side DLC connector (5).
Disconnect the passenger side airbag connector (6).
Courtesy of GENERAL MOTORS COMPANY

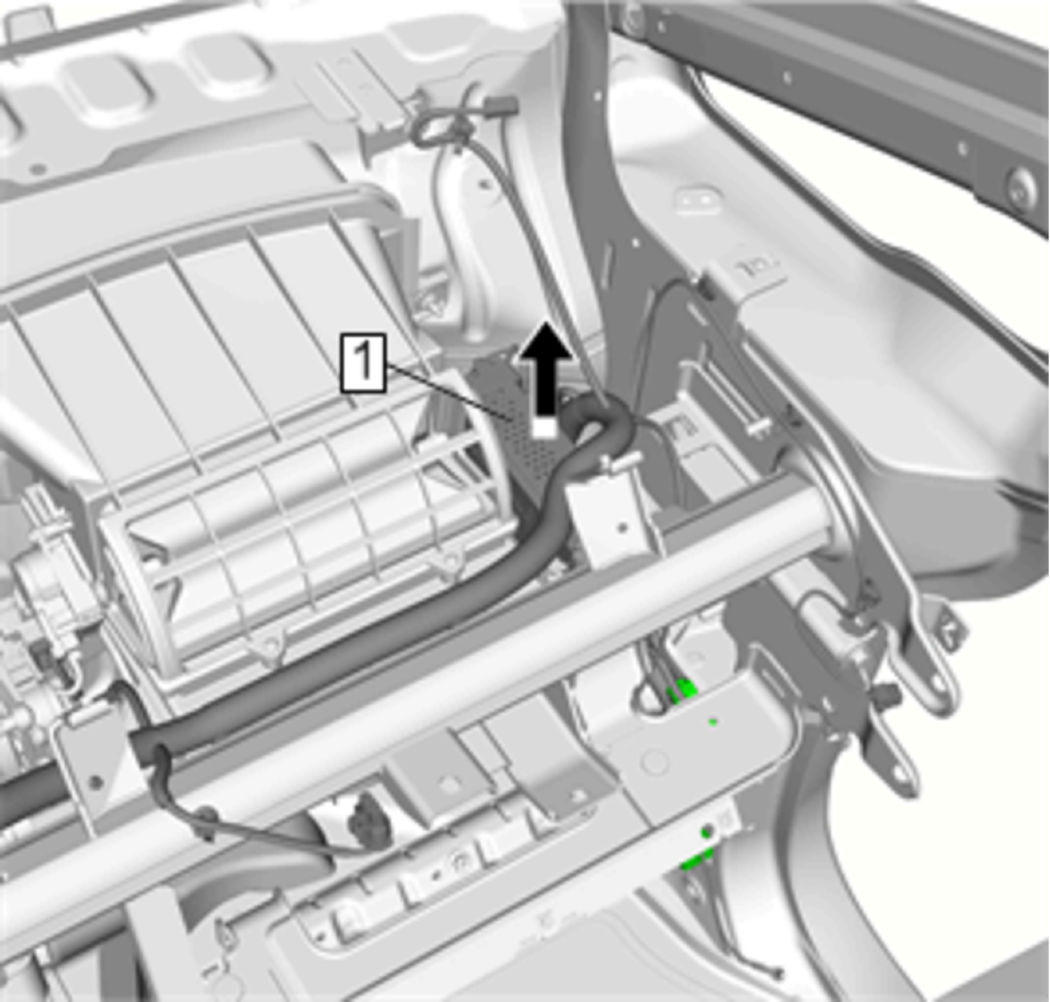

Unclip the harness retainer (1).
Courtesy of GENERAL MOTORS COMPANY

Pull the radio assembly (1) upward with the harness.
Courtesy of GENERAL MOTORS COMPANY

Position the radio and harness assembly toward the interior of the vehicle.
Disconnect the electrical connectors (1).
Detach the wiring harness securing clips.
Remove the radio from the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Bolt (1) - Remove
Communication Interface Module Battery @ Radio Assembly (2) - Remove
