Radio Control Switch Replacement - Steering Wheel (Right Side Front)
WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

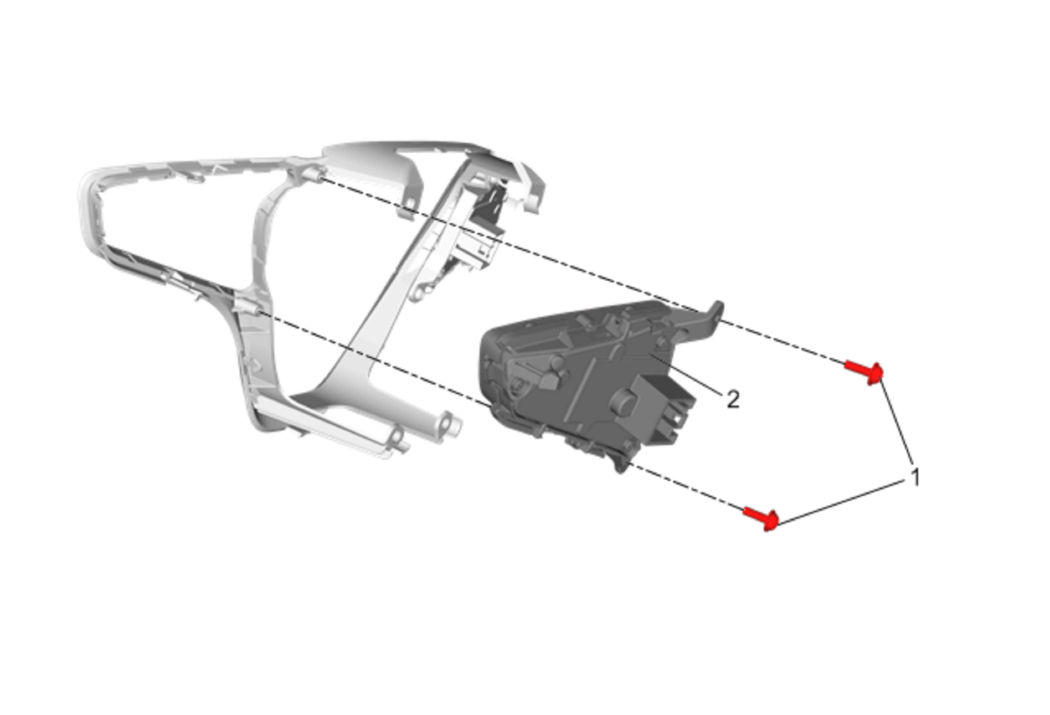

| Callout | Component Name |
|---|---|
| Preliminary Procedure Steering Wheel Spoke Cover Replacement |
|
| 1 | Radio Control Switch Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Radio Control Switch Procedure Remove the radio control switch from the steering wheel spoke cover. |
