Driver Information Display Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

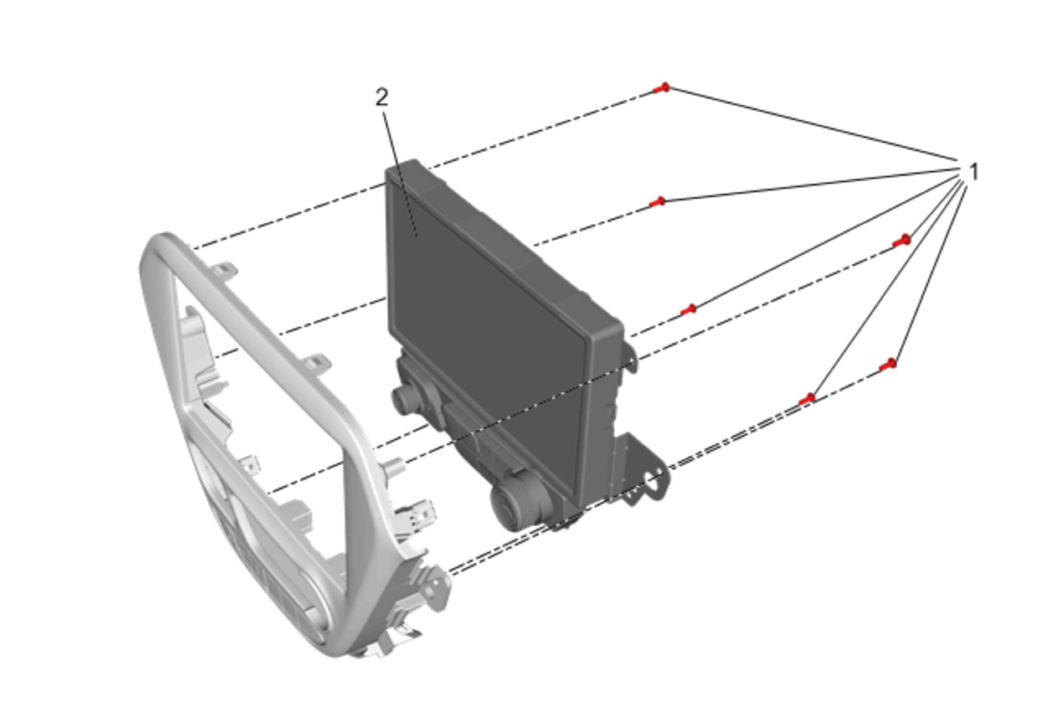

Callout	Component Name
Preliminary Procedure Instrument Panel Trim Plate Replacement
1	Driver Information Display Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Driver Information Display Procedure Transfer components as necessary. Refer to Control Module References for programming and setup procedures, if required.

Callout

Component Name

Preliminary Procedure
Instrument Panel Trim Plate Replacement

Driver Information Display Bolt [6x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Driver Information Display

Procedure

Transfer components as necessary.
Refer to Control Module References for programming and setup procedures, if required.
