Communication Interface Module Battery Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

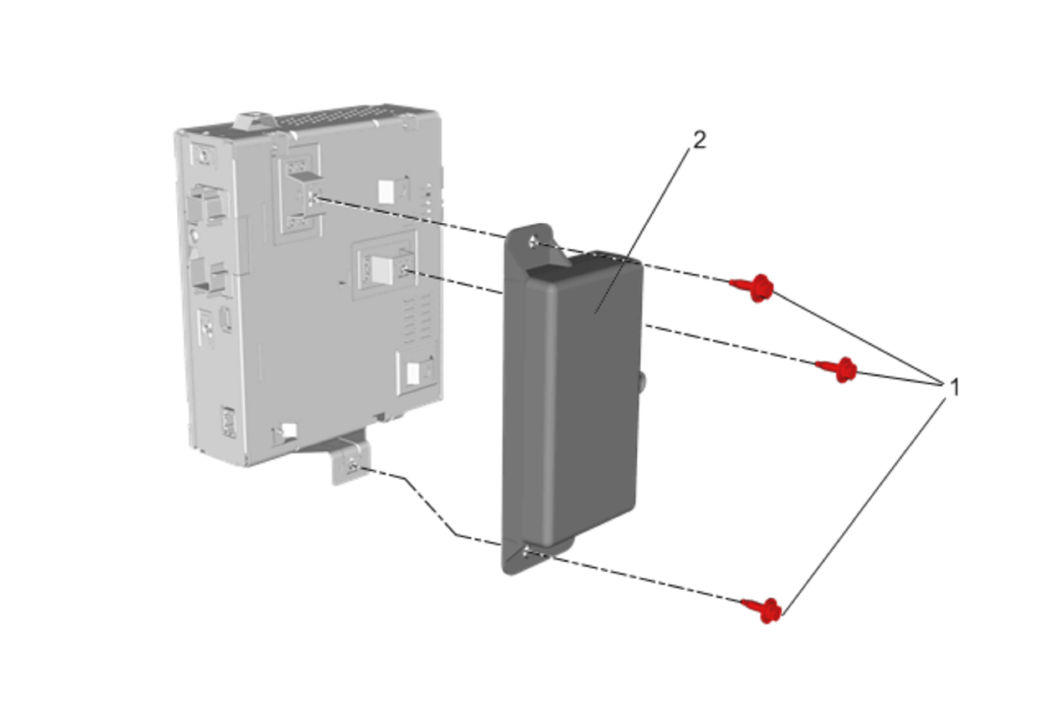

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radio. Radio Replacement |
|
| 1 | Communication Interface Module Battery Bolt [3x]
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Communication Interface Module Battery |
