Communication Center Call Switch Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

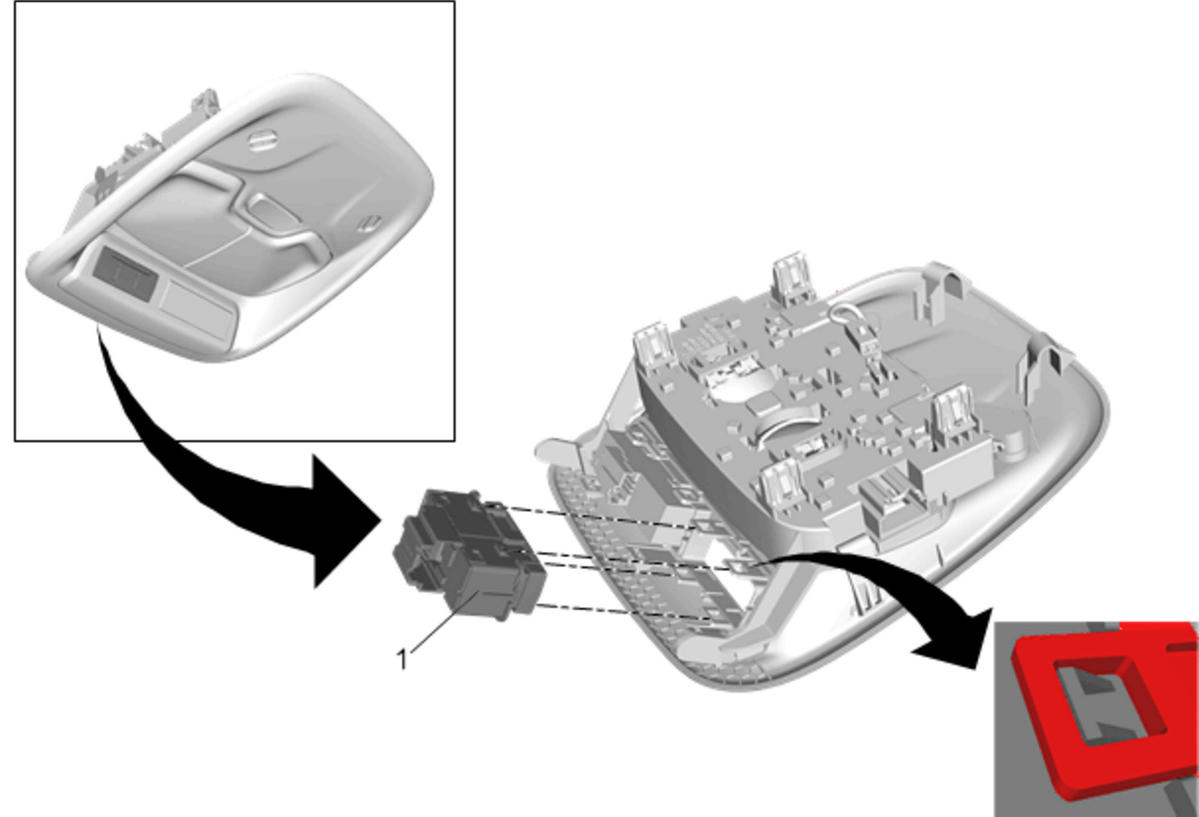

GM4546960Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Roof Console Replacement
1 Communication Center Call Switch

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Release tabs and remove the switch from the roof console.
  3. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
