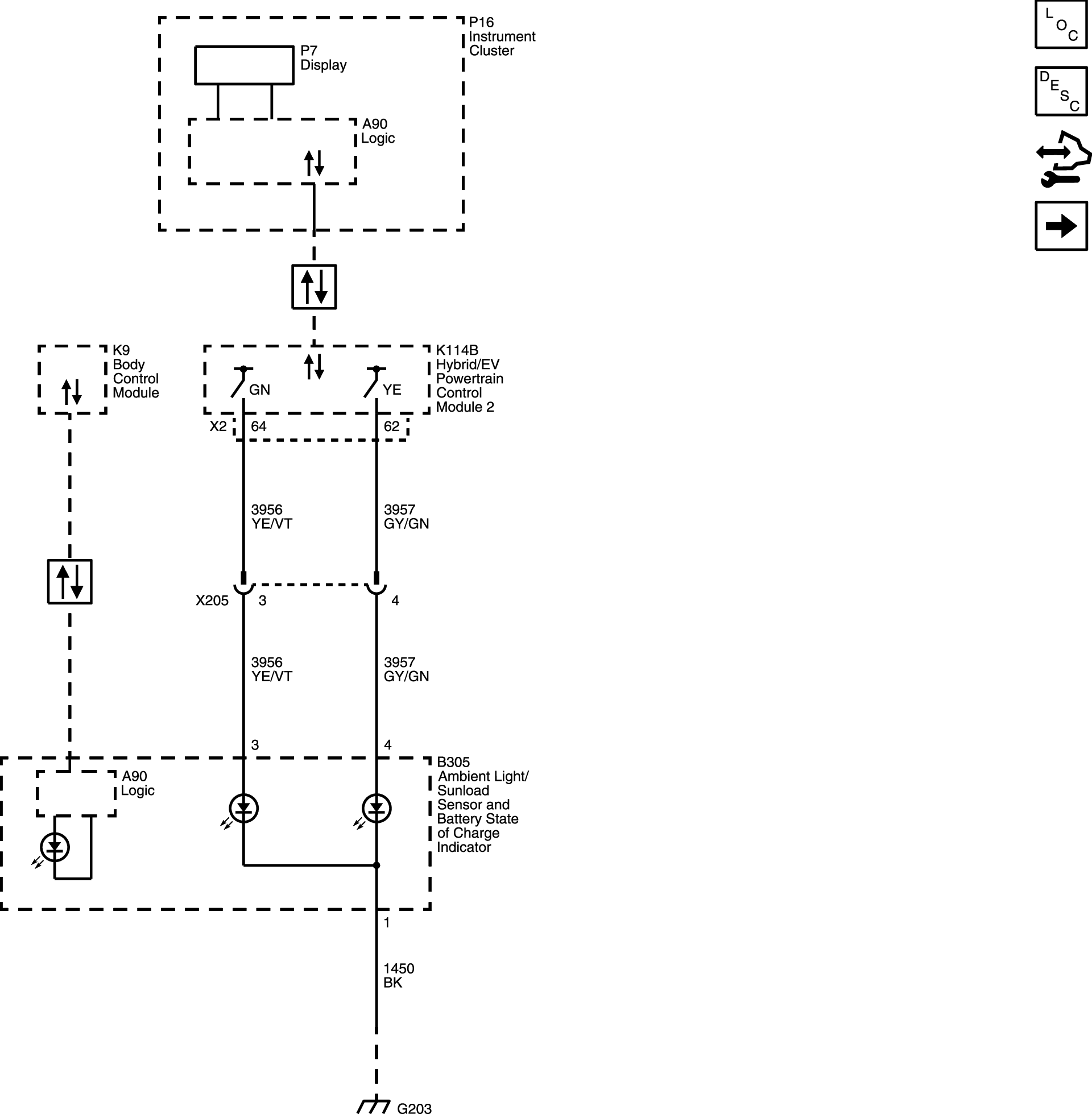

Home >> Chevrolet >> 2019 >> Bolt EV Premier >> Repair and Diagnosis >> Electrical >> Body Electrical >> Plug-In Charging >> Schematic and Routing Diagrams >> Plug-In Charging Schematics >> Battery State of Charge Indicators
