Ignition Lock Key Transmitter Antenna Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Stowage Compartment Divider Replacement

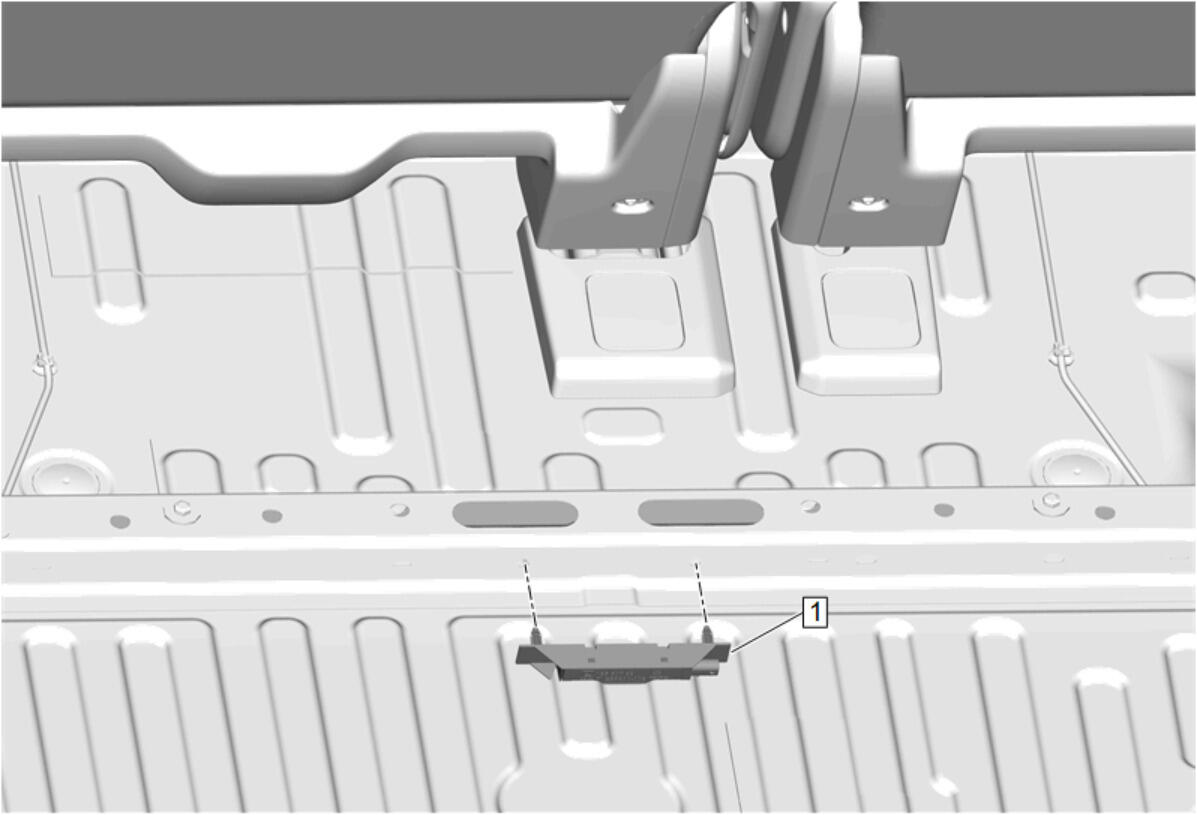

1	Ignition Lock Key Transmitter Antenna Bracket Procedure Disconnect the electrical connector. Using a flat-bladed plastic trim tool, release the retaining clips. Transfer components as necessary. NOTE: Some components not shown for graphic clarity.

Callout

Component Name

Ignition Lock Key Transmitter Antenna Bracket

Procedure

NOTE:

Some components not shown for graphic clarity.
