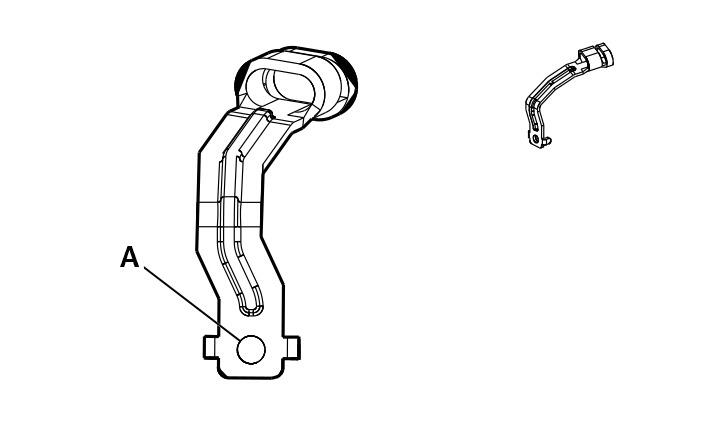

B110 Battery Sensor Module X2 (LSY)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Negative Battery Cable
- OEM Connector: BBS84017
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
35 |
BK |
50 |
Ground |
I |
- |
