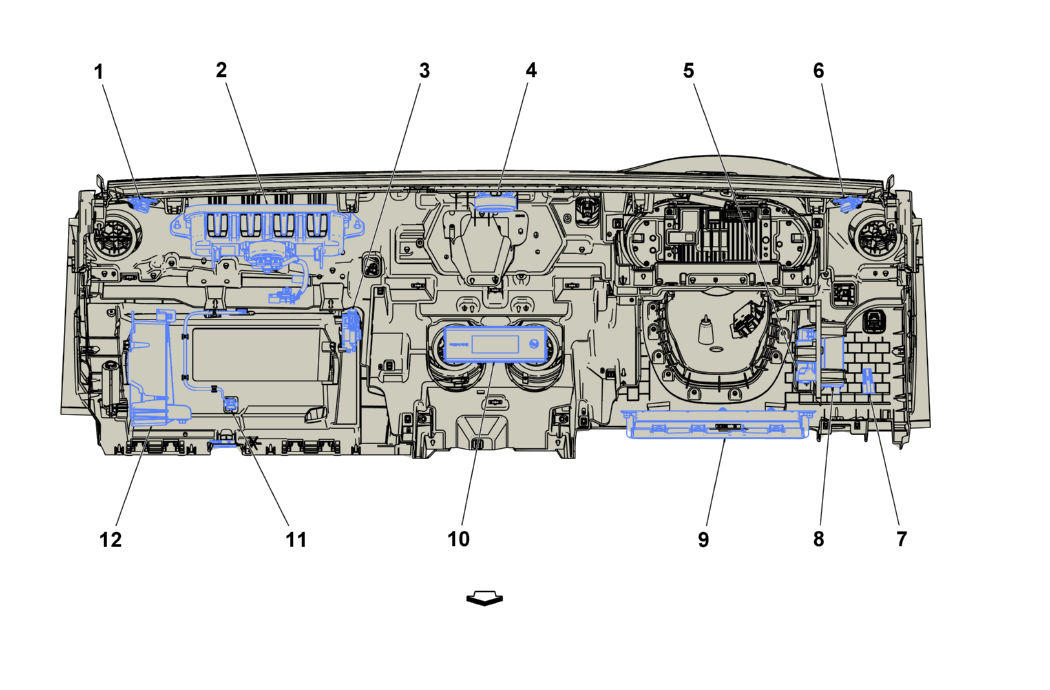

Rear of Instrument Panel Components
 Courtesy of GENERAL MOTORS COMPANY
|
Rear of Instrument Panel Components
| Component Name |
Callout |
| P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA)
, or P19W Speaker - Right Instrument Panel (UQF) |
1 |
| F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag |
2 |
| M91 Instrument Panel Compartment Door Unlatch Actuator M91 Instrument Panel Compartment Door Unlatch Actuator |
3 |
| P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel (UQA) |
4 |
| K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1
, or K56 Serial Data Gateway Module X2 |
5 |
| P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA)
, or P19J Speaker - Left Instrument Panel (UQF) |
6 |
| R6F Terminating Resistor - High Speed Extension Bus 2 R6F Terminating Resistor - High Speed Extension Bus 2 |
7 |
| K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1)
, or K73 Telematics Communication Interface Control Module X5 (UE1)
, or K73 Telematics Communication Interface Control Module X7 (UE1) |
8 |
| F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver |
9 |
| K33 HVAC Control Module K33 HVAC Control Module X1
, or K33 HVAC Control Module X2
, or K33 HVAC Control Module X3
, or K33 HVAC Control Module X4 |
10 |
| E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp |
11 |
| A11 Radio A11 Radio X1 (IOR)
, or A11 Radio X1 (IOT/IOU)
, or A11 Radio X11 (IOT/IOU)
, or A11 Radio X2 (IOR)
, or A11 Radio X2 (IOT/IOU)
, or A11 Radio X3 (IOR)
, or A11 Radio X3 (IOT/IOU)
, or A11 Radio X4 (IOR)
, or A11 Radio X4 (IOT/IOU)
, or A11 Radio X5 ((IOT/IOU)+UV2/UVB)
, or A11 Radio X5 (IOR)
, or A11 Radio X6 (IOR+UE1)
, or A11 Radio X6 (IOT/IOU)
, or A11 Radio X7 (IOR+UVB)
, or A11 Radio X7 (IOT/IOU)
, or A11 Radio X8 ((IOT/IOU)-UE1)
, or A11 Radio X8 (IOR+U2K)
, or A11 Radio X9 ((IOT/IOU)+U2K) |
12 |
