Installation Procedure

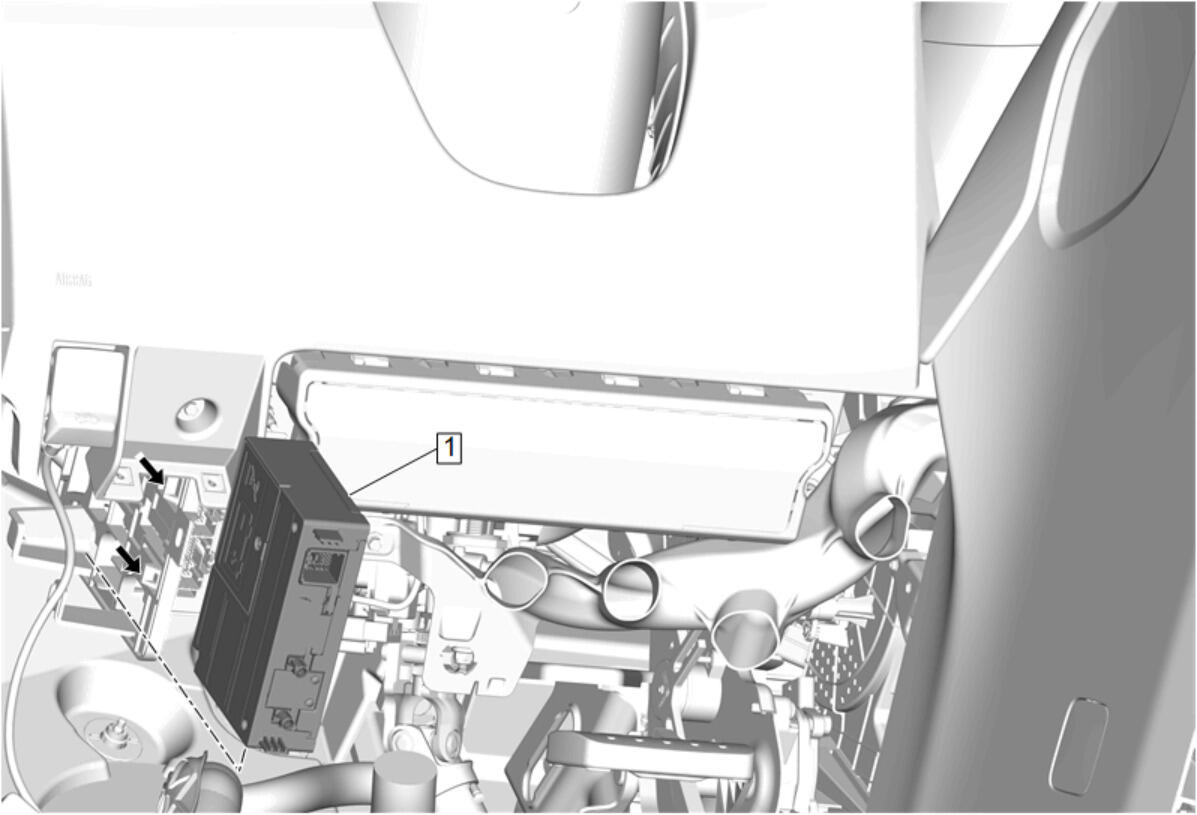

  1. GM5128080Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module (1) - Install

  2. Connect the electrical connectors.
  3. Install the 2 harness retainers to the instrument panel tie bar and the communication interface module bracket.

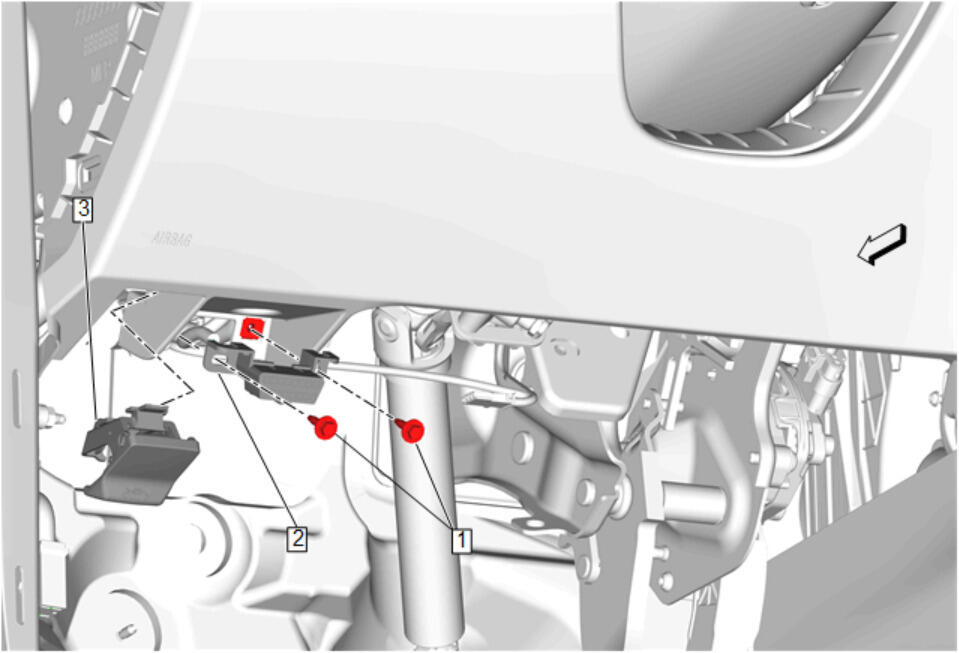

  4. GM5130012Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector (2) - Install

  5. Data Link Connector Bolt (1) - Install - Instrument Panel Knee Bolster Replacement

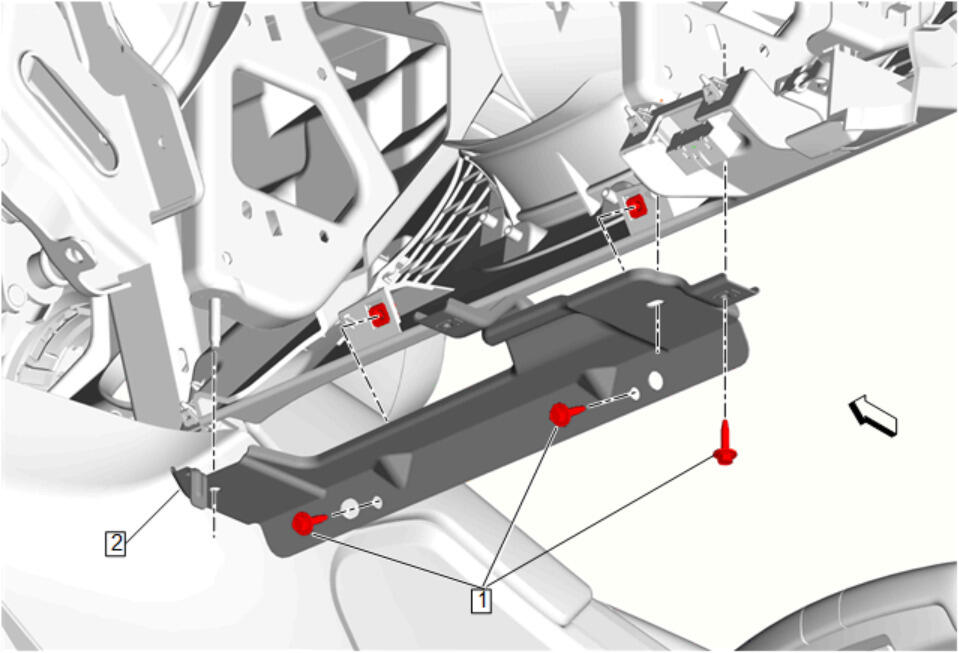

  6. GM5129734Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install - Instrument Panel Knee Bolster Deflector Replacement

  7. Perform the necessary programming and setup procedure: Control Module References
