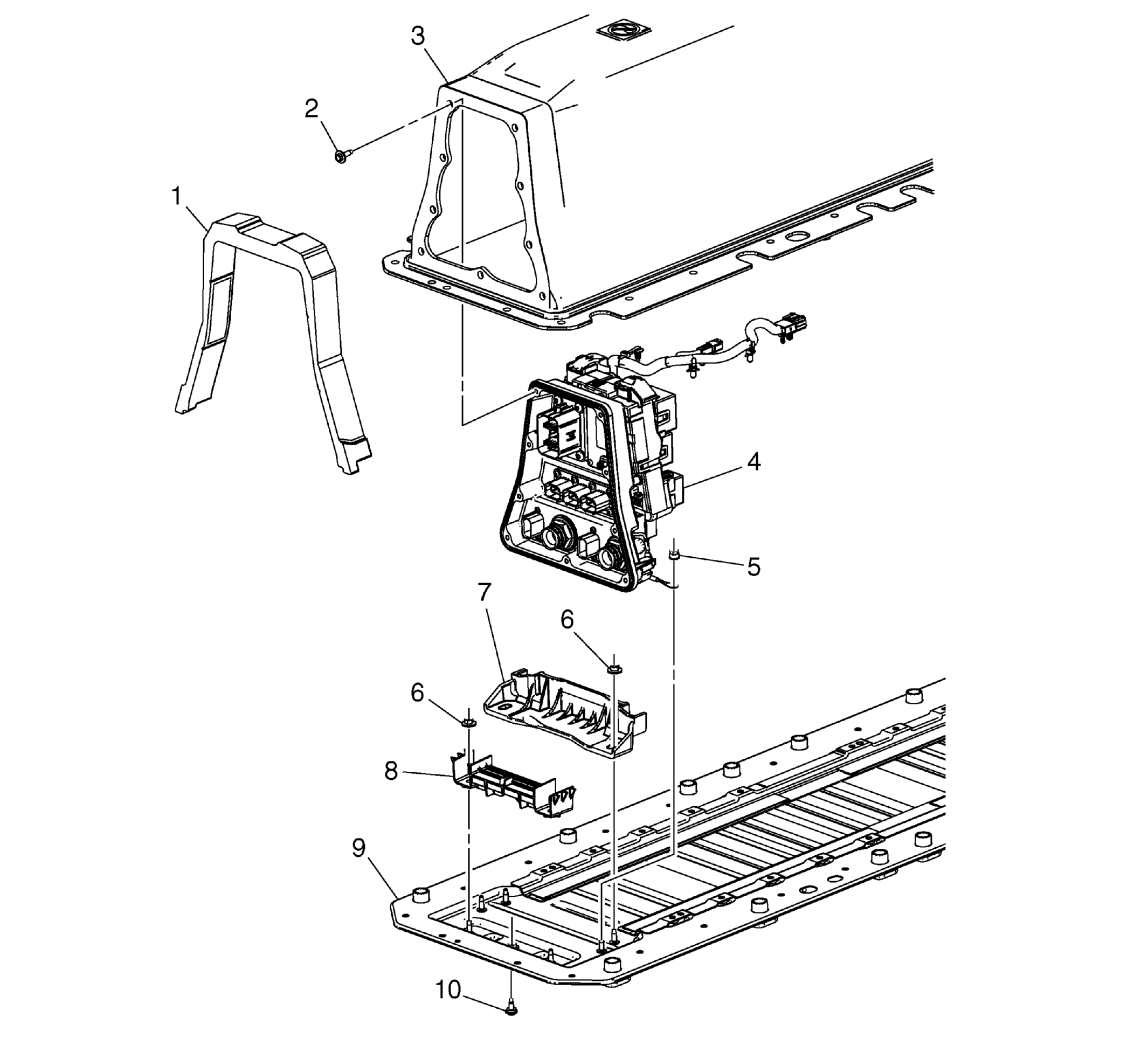

Battery Relay Mounting Assembly
| Callout | Component Name |
|---|---|
| 1 | Battery Insulator |
| 2 | Bolt |
| 3 | High Voltage Battery Cover |
| 4 | Generator Battery Disconnect Relay |
| 5 | Nut |
| 6 | Heater and Air Conditioning Evaporator and Blower Module Nut |
| 7 | Battery Tray Front Brace |
| 8 | Battery Tray Front Brace |
| 9 | High Voltage Battery Tray |
| 10 | Battery Tray Bolt |
