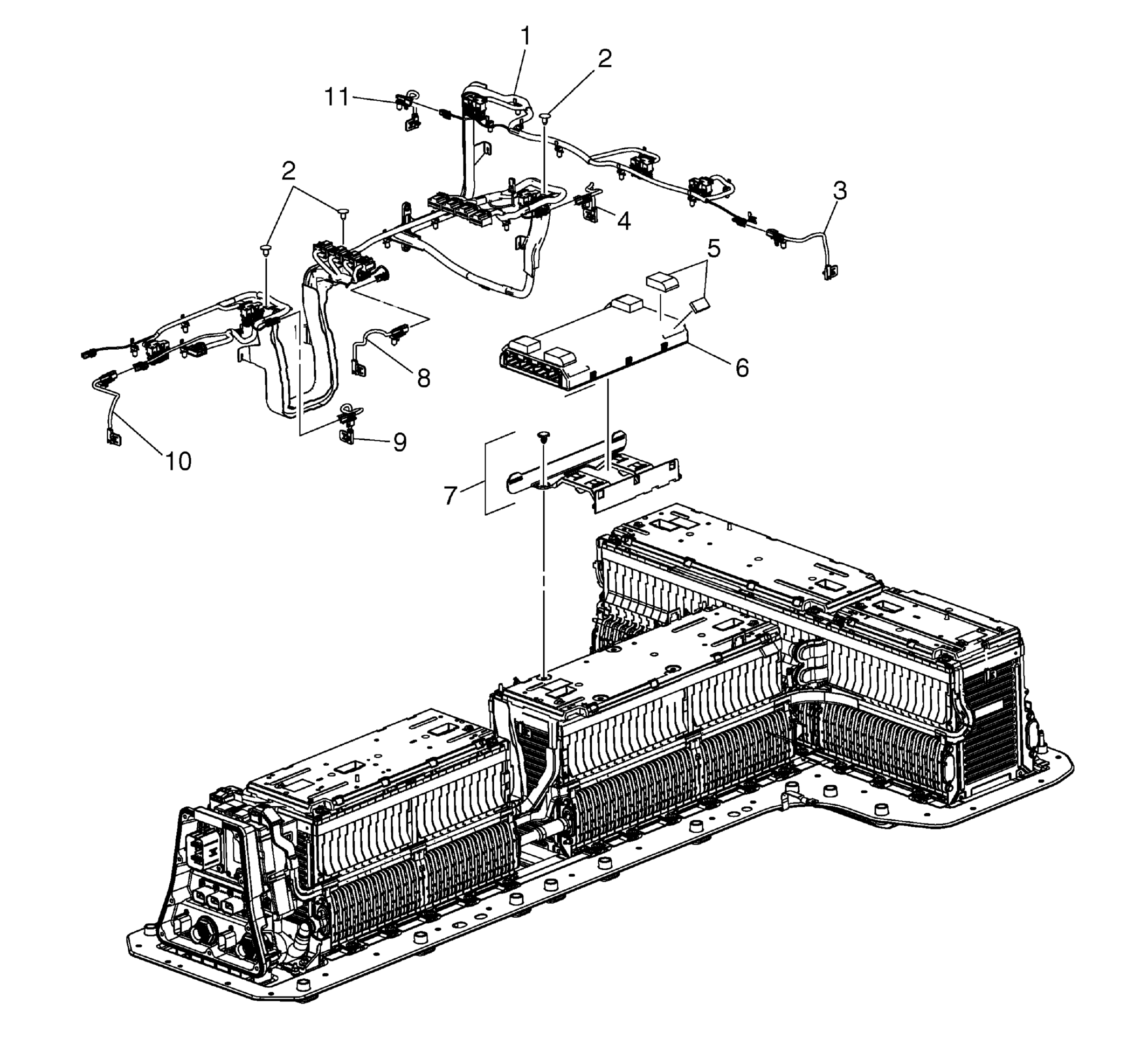

Battery Harness Module Assembly
| Callout | Component Name |
|---|---|
| 1 | Auxiliary Battery Wiring Harness |
| 2 | Retainer |
| 3 | Battery Cell Temperature Sensor |
| 4 | Battery Cell Temperature Sensor |
| 5 | High Voltage Battery Cover Seal Adhesive |
| 6 | Battery Energy Control Module |
| 7 | Interface Control Module Bracket |
| 8 | Battery Cell Temperature Sensor |
| 9 | Battery Cell Temperature Sensor |
| 10 | Battery Cell Temperature Sensor |
| 11 | Battery Cell Temperature Sensor |
