Battery Cover Assembly

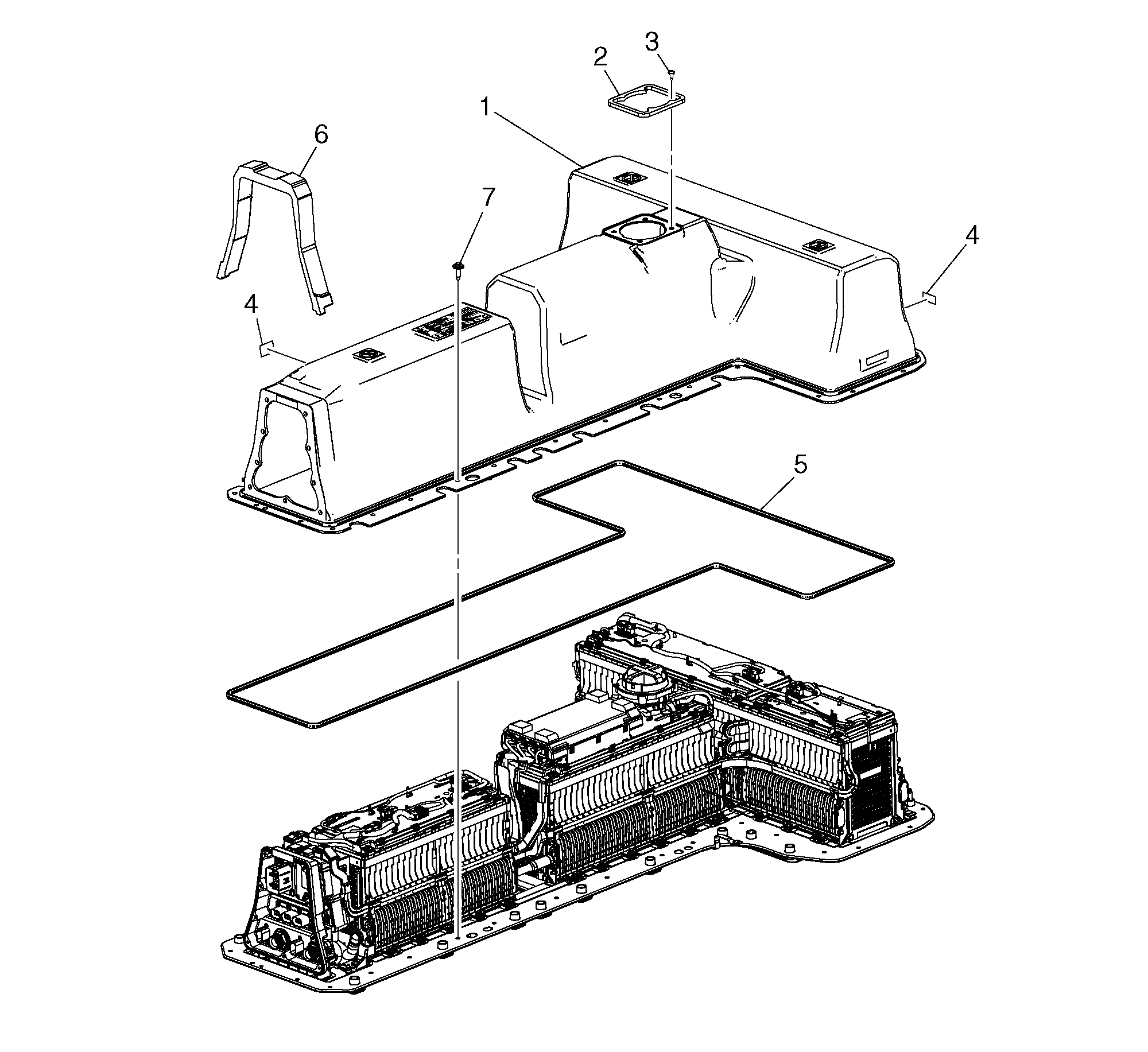

Fig 1: Exploded View Of Battery Cover Assembly Components
GM4244380Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 High Voltage Battery Cover
2 High Voltage Battery Cover Seal Adhesive
3 Battery Tray Bolt
4 Vent Valve
5 High Voltage Battery Cover Seal
6 Battery Insulator
7 Bolt
