Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
Transfer components as necessary.

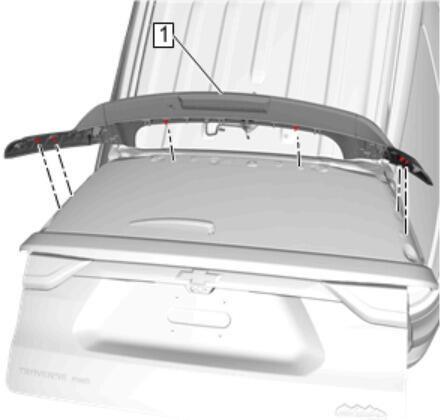

- Rear End Spoiler (1) - Install

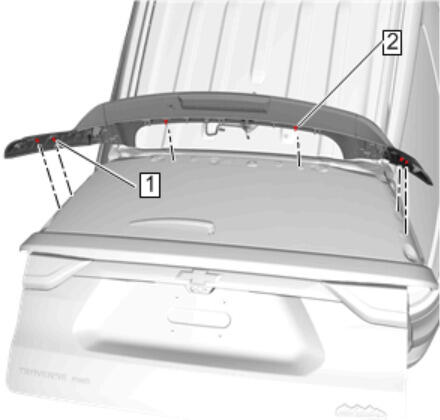

Liftgate Side Applique Retainer (1) - Install [4x]
- Rear End Spoiler Retainer (2) - Install [2x]
- CAUTION:
Refer to Fastener Caution .

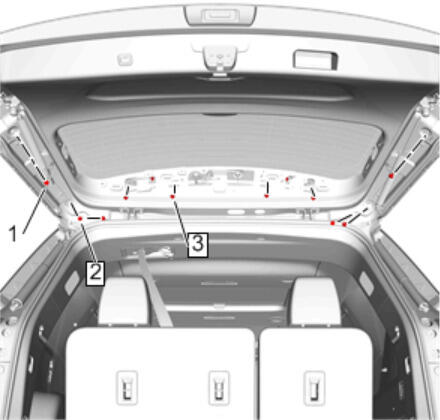

Liftgate Side Applique Bolt (1) - Install and tighten [2x] 6N.m (53 lb in)
- Rear End Spoiler Bolt (2) - Install and tighten [4x] 6N.m (53 lb in)
- Rear End Spoiler Nut (3) - Install and tighten [4x] 6N.m (53 lb in)
Liftgate Upper Center Trim Finish Panel (1) - Install - Liftgate Upper Center Trim Finish Panel Replacement
