Data Link Connector Power and Ground and Serial Data Gateway Module

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

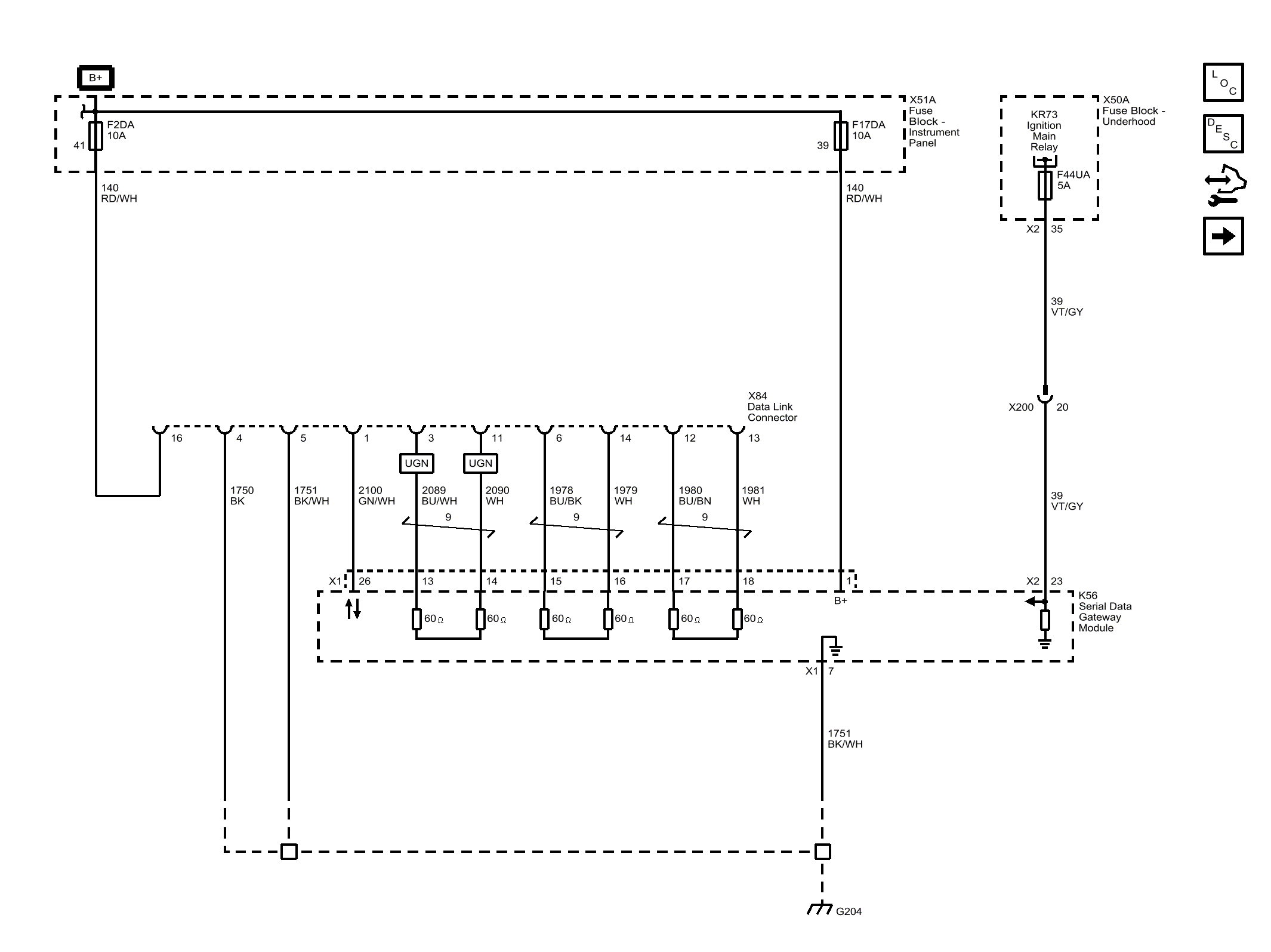

GM5039816Courtesy of GENERAL MOTORS COMPANY
