Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

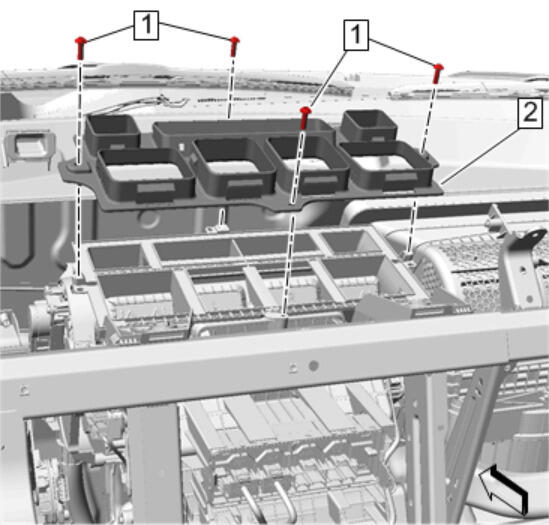

Air Distributor Duct Adapter (2) - Install

CAUTION:

Refer to Fastener Caution .

Air Distributor Duct Adapter Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Air Outlet Duct - Right Side (1) - Install - Instrument Panel Outer Air Outlet Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Duct - Right Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Air Outlet Duct - Left Side (2) - Install - Instrument Panel Outer Air Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Duct - Left Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Windshield Defroster Outlet Duct (1) - Install - Windshield Defroster Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel (1) - Install - Instrument Panel Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Steering Column (1) - Install - Steering Column Replacement (N37) , or Steering Column Replacement (N38)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster Bracket (1) - Install - Instrument Panel Knee Bolster Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Front Floor Console (1) - Install - Front Floor Console Replacement
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Instrument Cluster (2) - Install - Instrument Cluster Replacement
Radio Control (1) - Install - Radio Control Assembly Replacement (With IO5, IO6)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment Door Opening Frame (4) - Install - Instrument Panel Compartment Door Opening Frame Replacement
Instrument Panel Compartment Door (3) - Install - Instrument Panel Compartment Door Replacement
Connect the electrical connectors.
Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement
Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Cup Holder Plate (1) - Install - Front Floor Console Cup Holder Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side
Instrument Panel Radio Front Trim Plate (1) - Install - Instrument Panel Radio Front Trim Plate Replacement (RPO IOA) , or Instrument Panel Radio Front Trim Plate Replacement (RPO IO5, IO6)
Instrument Panel Knee Bolster (3) - Install - Instrument Panel Knee Bolster Replacement
