Installation Procedure
- NOTE:
When reconnecting the module, the BROWN J2 connector must be connected last. Once all the parts are all in place, check and clear all DTCs in the heater and air conditioning remote control.

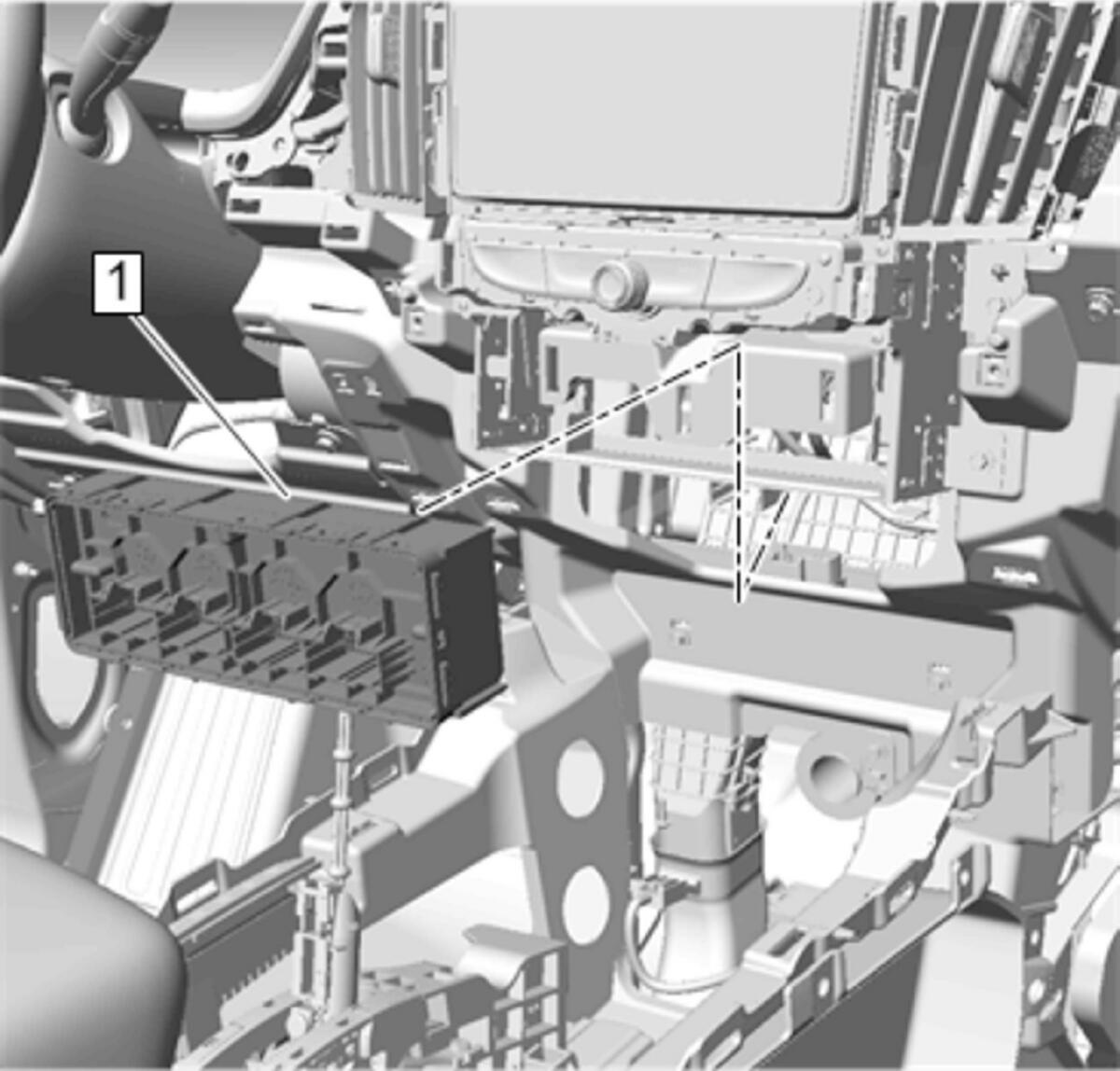

Heater and Air Conditioning Remote Control (1) - Install
- Connect the electrical connectors.
Instrument Panel Compartment Door Opening Frame (4) - Install - Instrument Panel Compartment Door Opening Frame Replacement
- Instrument Panel Compartment Door (3) - Install - Instrument Panel Compartment Door Replacement
- Connect the electrical connectors.
- Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement
- Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side
Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side
- Instrument Panel Radio Front Trim Plate (1) - Install - Instrument Panel Radio Front Trim Plate Replacement (RPO IOA)Instrument Panel Radio Front Trim Plate Replacement (RPO IO5, IO6)
- Instrument Panel Knee Bolster (3) - Install - Instrument Panel Knee Bolster Replacement
Front Floor Console Cup Holder Plate (1) - Install - Front Floor Console Cup Holder Plate Replacement
Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
- Perform the necessary programming and setup procedure:Control Module References
- Clear the DTCs from the heater and air conditioning remote control module.
- Perform the actuator calibration procedure. Actuator Recalibration
