Knock Sensor Replacement (Sensor 2)

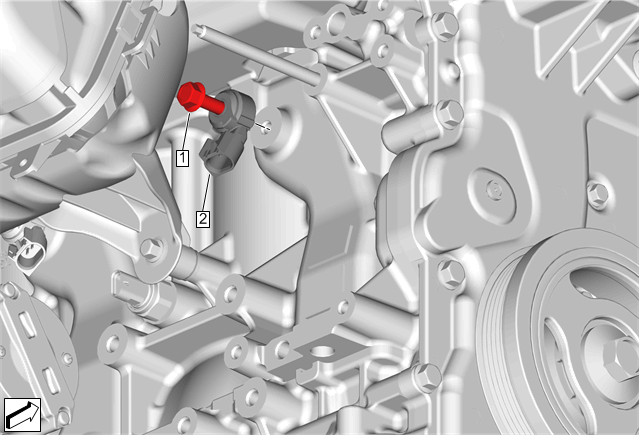

GM4846633
Callout Component Name

Preliminary Procedures

  1. Generator Replacement (LTG)
  2. Disconnect the electrical connector.
1 Knock Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Knock Sensor
