Knock Sensor Replacement (Sensor 1)

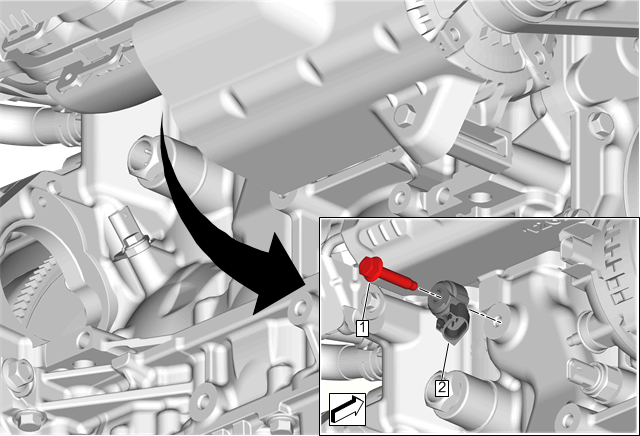

GM4846632
Callout Component Name

Preliminary Procedures

  1. Starter Replacement (LTG - All Wheel Drive)Starter Replacement (LTG - Front Wheel Drive)
  2. Disconnect the electrical connector.
1 Knock Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Knock Sensor
