Installation Procedure

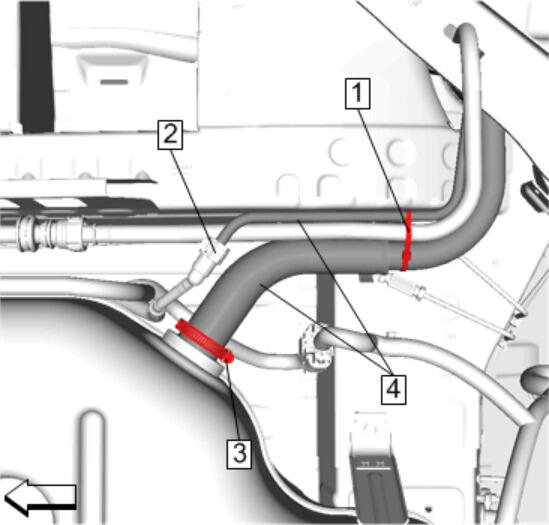

  1. GM4745400

    Fuel Tank Filler Hose (4) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Fuel Tank Filler Hose Clamp (3) - Install and tighten 4 N.m (35 lb in)
  3. Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  4. Tie Strap (1) - Install NEW
  5. Rear Cradle Mount Bolt Bracket - Install - Rear Cradle Mount Bolt Bracket Replacement

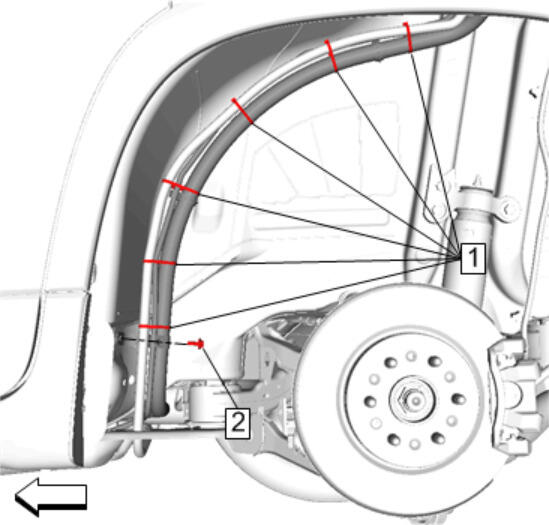

  6. GM4745390

    Fuel Tank Filler Pipe Bolt (2) - Install and tighten 9 N.m (80 lb in)

  7. Tie Strap (1) - Install NEW [6x]

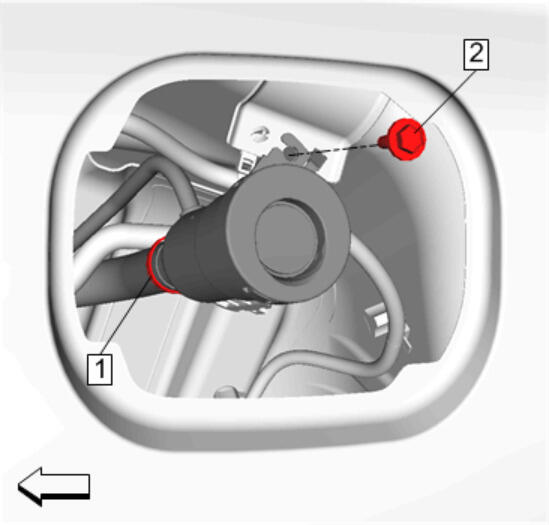

  8. GM4745385

    Fuel Tank Filler Pipe Bolt (2) - Install and tighten 2.5 N.m (22 lb in)

  9. Tie Strap (1) - Install NEW
  10. Rear Wheelhouse Liner - Install - Rear Wheelhouse Liner Replacement
  11. Fuel Tank Filler Pipe Housing - Install - Fuel Tank Filler Pipe Housing Replacement
  12. Refill the fuel tank.
