Fuel Tank Filler Hose Replacement

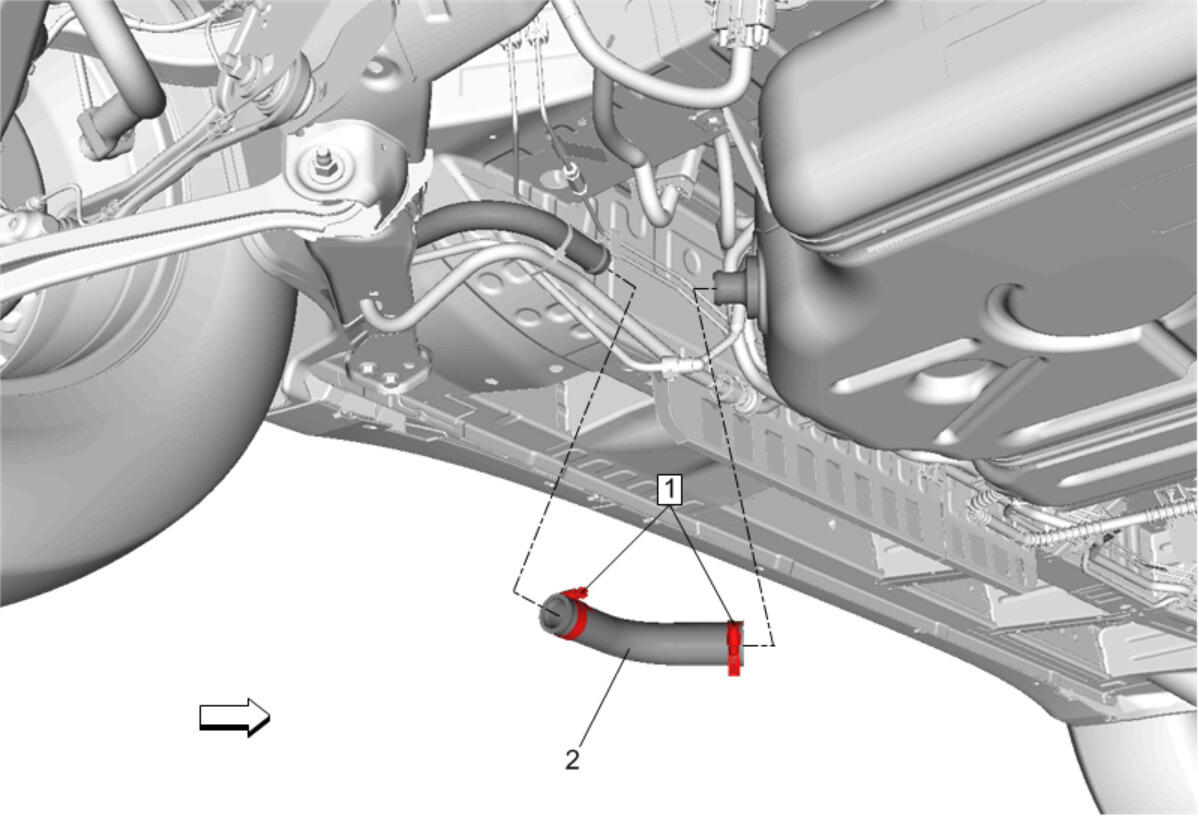

GM4742959
Callout Component Name

Preliminary Procedures

  1. Fuel Tank Draining
  2. Lifting and Jacking the Vehicle
1 Fuel Tank Filler Hose Clamp [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Fuel Tank Filler Hose
