Fuel Pump Cover Replacement

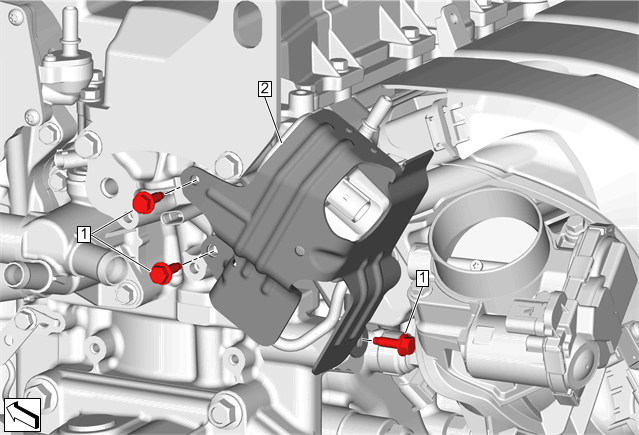

Callout	Component Name
Preliminary Procedures Charge Air Cooler Outlet Air Hose Replacement Intake Manifold Cover Replacement Remove the heater inlet bracket hose bolt and reposition the bracket. Heater Inlet Hose Bracket Replacement (LTG) Disconnect the electrical connector.
1	Fuel Pump Shield Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Pump Cover

Callout

Component Name

Preliminary Procedures

Fuel Pump Shield Bolt [3x]

CAUTION:

Tighten
10 N.m (89 lb in)

Fuel Pump Cover
