Removal Procedure
- Relieve the fuel system pressure. Fuel Pressure Relief
- Fuel Feed Front Pipe - Disconnect - Plastic Collar Quick Connect Fitting Service
Fuel Feed Pipe (1) @ Retainer (2) - Remove
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Fuel Feed Pipe Protector Nut (1) - Remove [2x]
- Fuel Feed Pipe Protector (2) - Remove
Fuel Feed Pipe (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

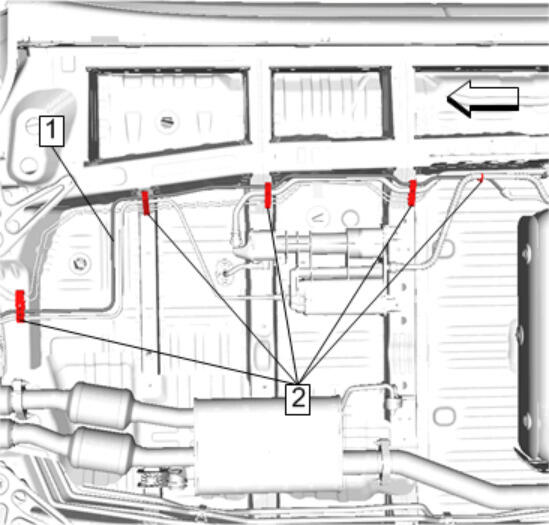

- Fuel Feed Pipe (1) @ Retainer (2) - Remove [5x]
- Fuel Feed Pipe (1) - Remove
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
