Engine Oil Pressure Sensor Replacement

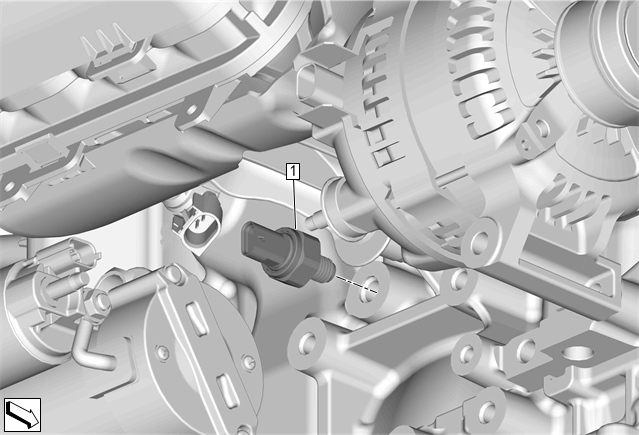

GM4846627
Callout Component Name

Preliminary Procedures

  1. Exhaust Front Pipe Replacement (LTG)
  2. Disconnect the electrical connector.
1 Engine Oil Pressure Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Tighten
35 N.m (26 lb ft)
