Engine Coolant Temperature Sensor Replacement

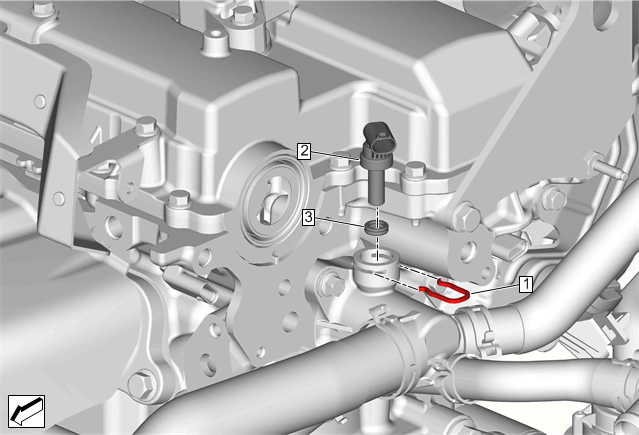

GM4775786
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (Static Fill)
  2. Vacuum Pump Replacement
  3. Disconnect the electrical connector.
1 Engine Coolant Temperature Sensor Retainer
2 Engine Coolant Temperature Sensor
3 Engine Coolant Temperature Sensor Seal
Procedure
The seal is reusable, inspect the seal and replace if damaged.
