Charge Air Cooler Replacement

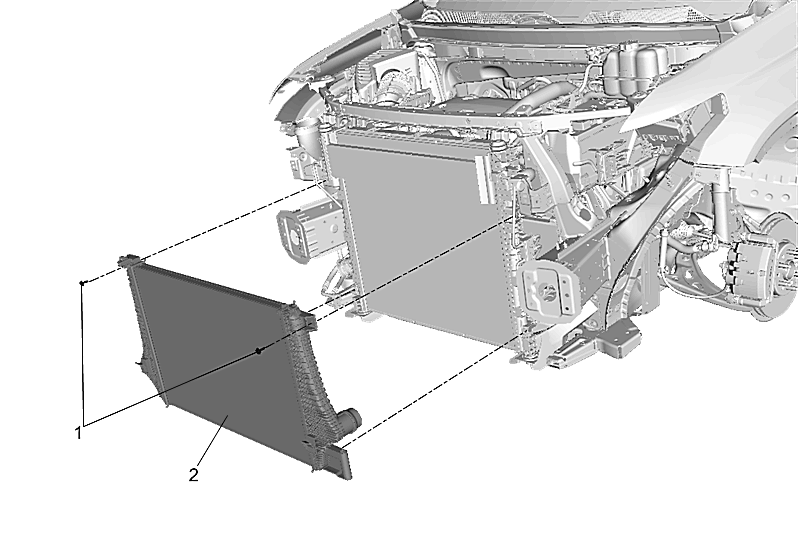

Callout	Component Name
Preliminary Procedures Air Conditioning Condenser Replacement (LTG) Charge Air Cooler Outlet Air Hose Replacement Charge Air Cooler Inlet Air Hose Replacement
1	Charge Air Cooler Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Charge Air Cooler

Callout

Component Name

Preliminary Procedures

Charge Air Cooler Bolt [2x]

CAUTION:

Tighten
5 N.m (44 lb in)

Charge Air Cooler
