S3 Transmission Shift Lever (W49)
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

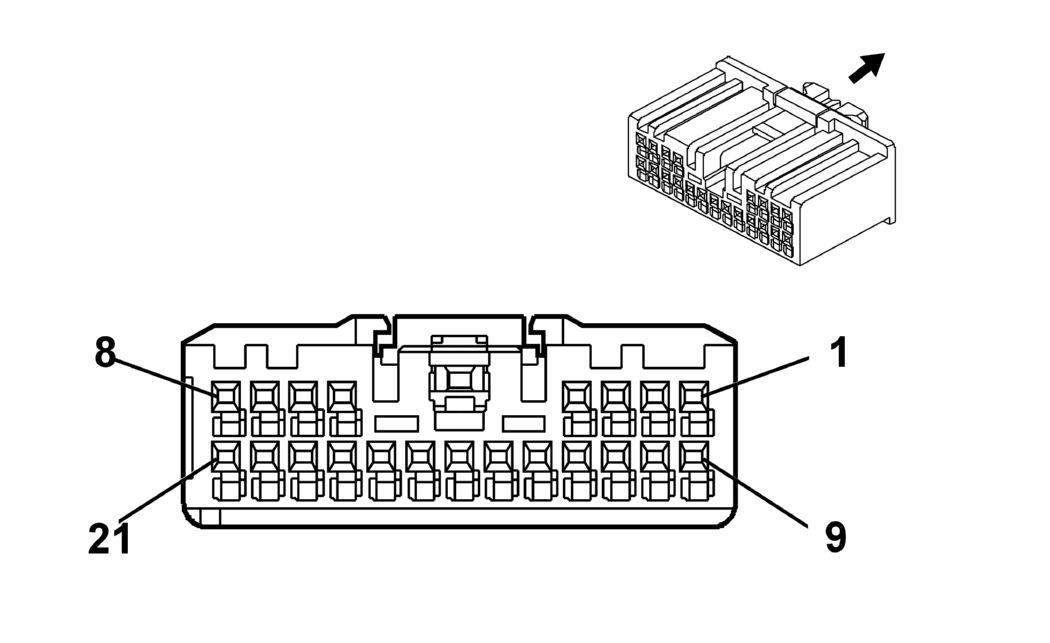

Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 13510219
- Service Connector: Service by Harness - See Part Catalog
- Description: 21-Way F 0.64 Series (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE/BU |
2633 |
Transmission Shifter Position Sensor 2 Alpha Signal |
I |
M3W |
| 2 |
0.35 |
BK/GN |
2636 |
Transmission Shifter Position Sensor 2 Low Reference |
I |
M3W |
| 3 |
0.35 |
VT/BU |
2634 |
Transmission Shifter Position Sensor 2 Beta Signal |
I |
M3W |
| 4 |
0.35 |
GN/RD |
2635 |
Transmission Shifter Position Sensor 2 Voltage Reference |
I |
M3W |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
BU/BN |
1378 |
Transmission Shift Selector Display Signal |
I |
M3W |
| 7 |
0.35 |
GN/GY |
4120 |
Local Interconnect Network Serial Data Bus 20 |
I |
M3W |
| 8 |
0.35 |
BK |
1650 |
Ground |
I |
M3W |
| 9 |
0.35 |
VT/GN |
2629 |
Transmission Shifter Park Position Switch 1 Signal |
I |
M3W |
| 10 |
0.35 |
BK/GY |
2630 |
Transmission Shifter Park Position Switch 1 Return |
I |
M3W |
| 11 |
0.35 |
WH/GY |
2631 |
Transmission Shifter Park Position Switch 2 Signal |
I |
M3W |
| 12 |
0.35 |
BK/VT |
2632 |
Transmission Shifter Park Position Switch 2 Return |
I |
M3W |
| 13 |
0.35 |
BU/RD |
2646 |
Transmission Shifter Position Sensor 1 Voltage Reference |
I |
M3W |
| 14 |
0.35 |
YE/BN |
2644 |
Transmission Shifter Position Sensor 1 Alpha Signal |
I |
M3W |
| 15 |
0.35 |
BK/BU |
2647 |
Transmission Shifter Position Sensor 1 Low Reference |
I |
M3W |
| 16 |
0.35 |
VT/BN |
2645 |
Transmission Shifter Position Sensor 1 Beta Signal |
I |
M3W |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
BK/BN |
2649 |
Transmission Shift Interlock Switch 1 Return |
I |
M3W |
| 19 |
0.35 |
WH |
2648 |
Transmission Shift Interlock Switch 1 Signal |
I |
M3W |
| 20 |
0.35 |
BK/GN |
2655 |
Transmission Shift Interlock Switch 2 Return |
I |
M3W |
| 21 |
0.35 |
WH/GN |
2654 |
Transmission Shift Interlock Switch 2 Signal |
I |
M3W |
