Intake Air Duct Replacement

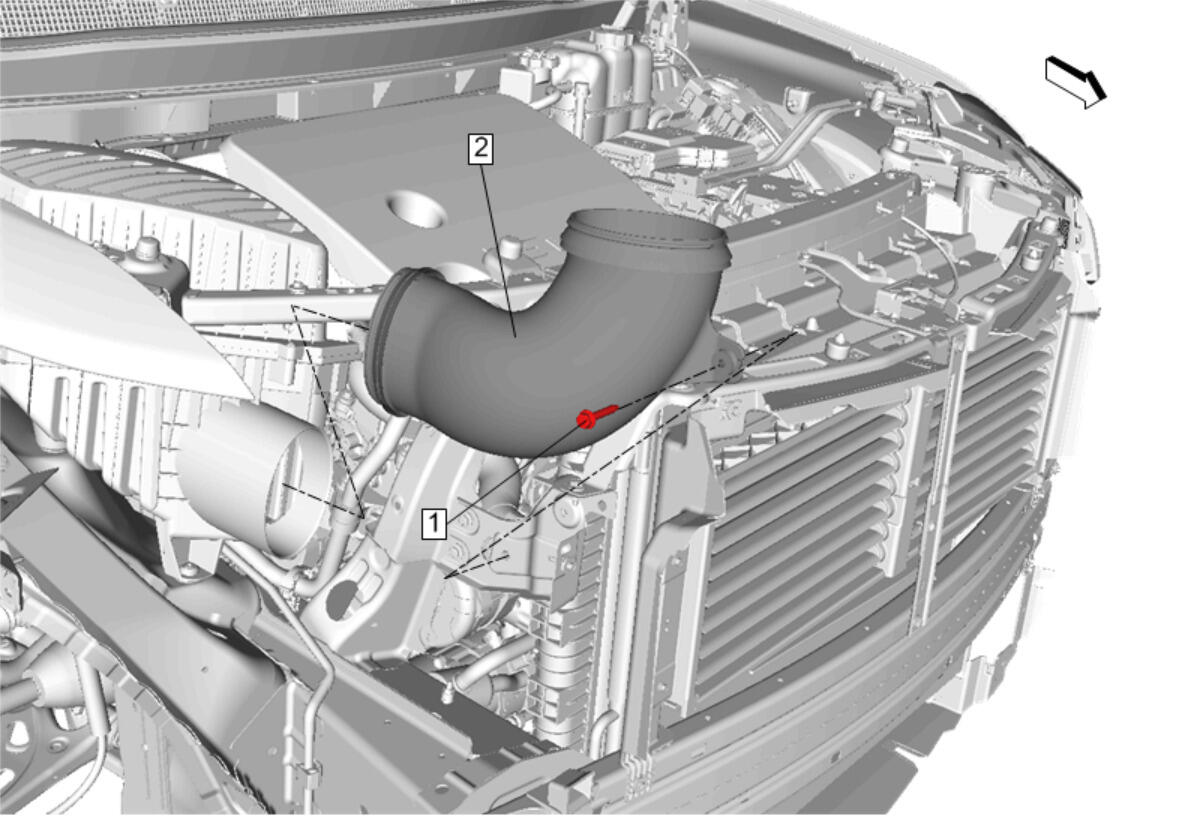

Callout	Component Name
Preliminary Procedures Intake Air Splash Shield Replacement Headlamp - Right Side - Remove - Headlamp Replacement
1	Intake Air Duct Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Intake Air Duct Procedure Pull intake air duct froward to release from air cleaner assembly.

Callout

Component Name

Preliminary Procedures

Intake Air Duct Bolt

CAUTION:

Tighten
9 N.m (80 lb in)

Intake Air Duct
Procedure
Pull intake air duct froward to release from air cleaner assembly.
