Engine Coolant Temperature Sensor Replacement

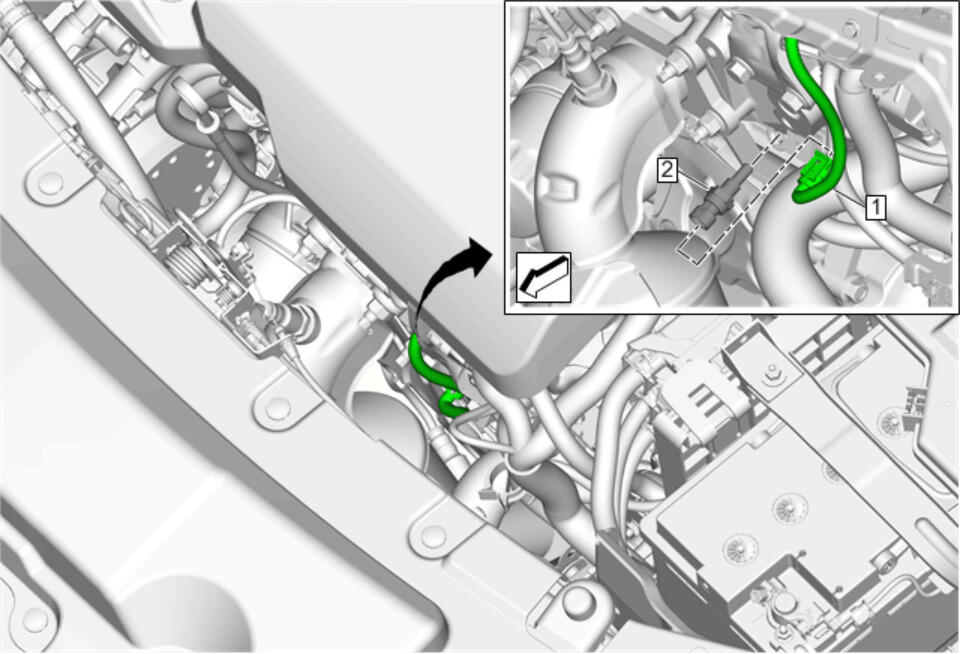

GM4753079
Callout Component Name
Preliminary Procedure
Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (Static Fill)
1 Electrical Connector
Procedure
Disconnect the electrical connector.
2 Engine Coolant Temperature Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Tighten
22 N.m (16 lb ft)
