Air Cleaner Element Replacement

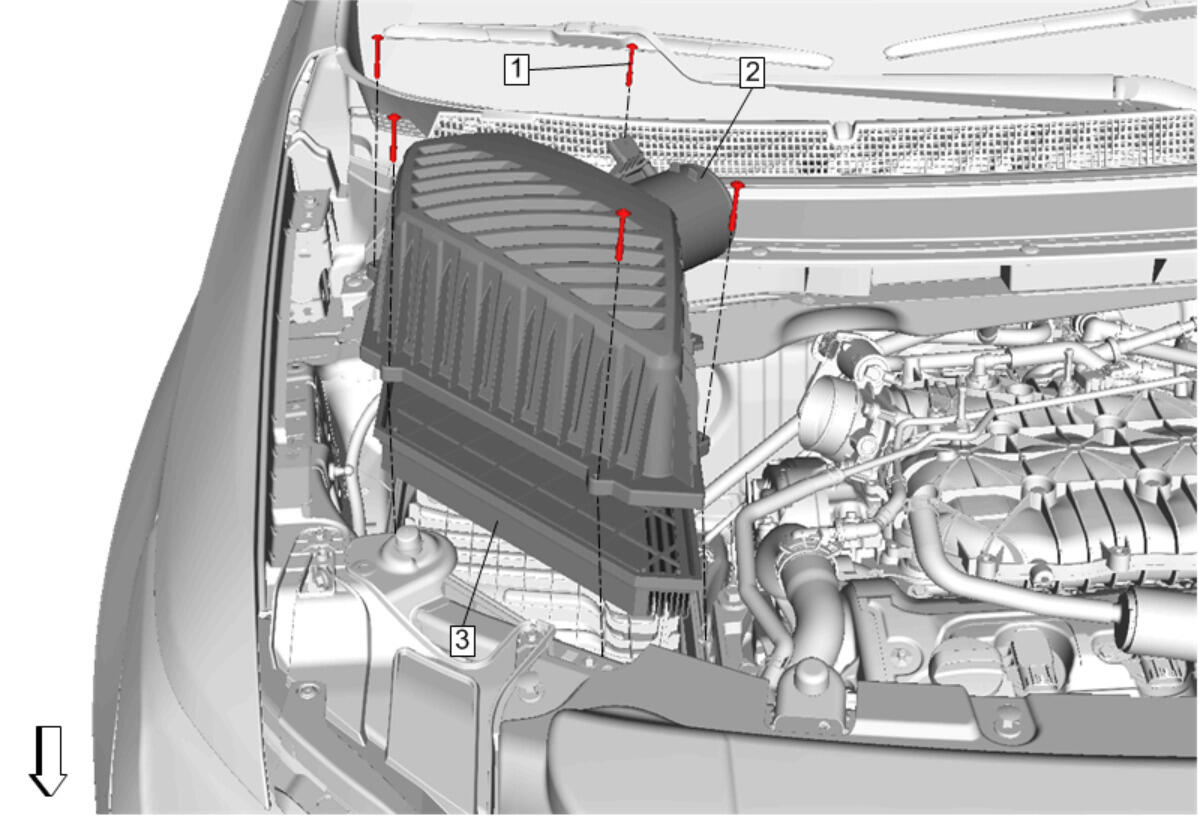

GM4724844
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
1 Air Cleaner Upper Housing Bolt [5x]
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Air Cleaner Upper Housing
3 Air Cleaner Element
