Installation Procedure

  1. Clean the contact surfaces between the transfer case and the transmission.

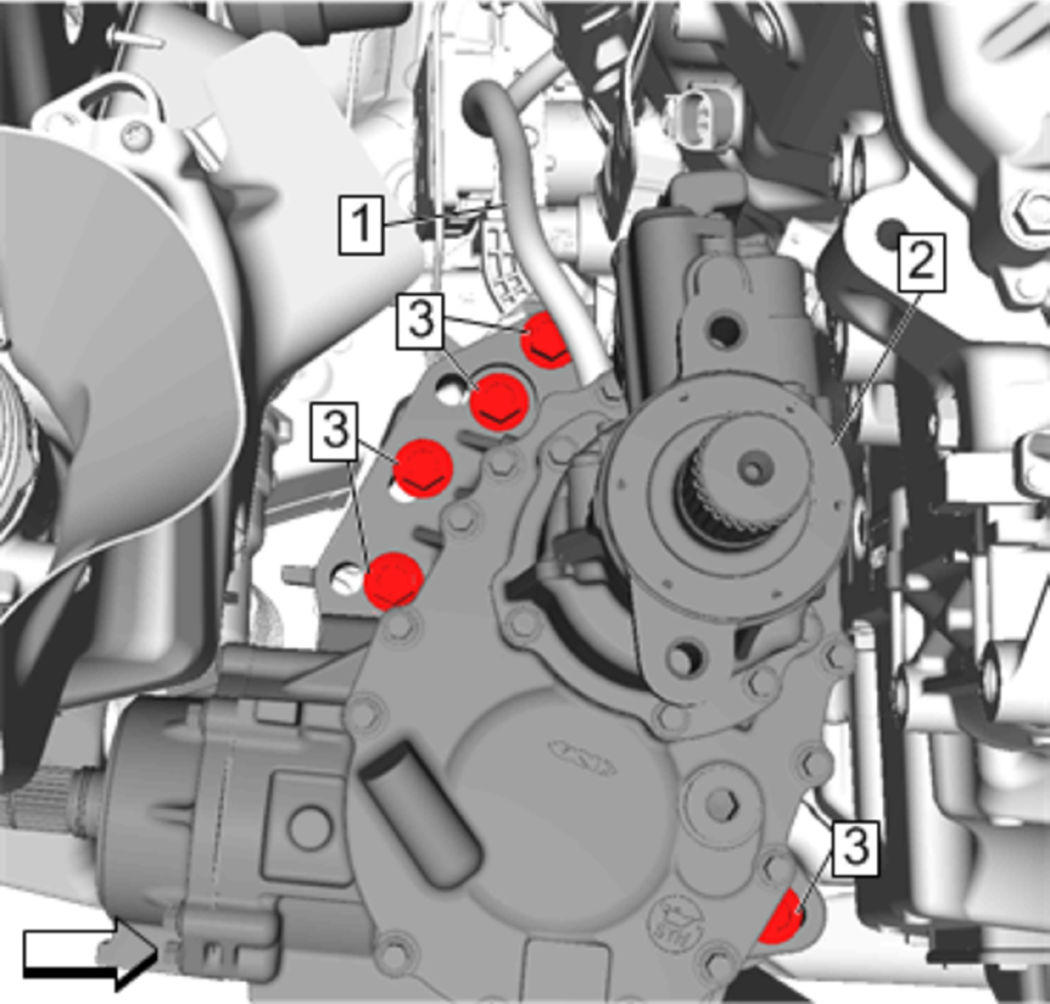

  2. GM4289095

    Support the transfer case with a suitable jack, and secure with suitable straps.

  3. Raise and align the transfer case in the correct position in relation to the transmission.
  4. Install the transfer case (2) to the transmission.
    5. CAUTION:

    Refer to Fastener Caution .

  5. Install the transfer case-to-transmission bolts (3) and tighten to 100 N.m (74 lb ft).
  6. GM4870059

    Install the transmission to transfer case bolt (1) and tighten to 100 N.m (74 lb ft).

  7. GM4734796

    Install the brace bolt (1) and tighten to 100 N.m (74 lb ft).

  8. Connect the shift actuator electrical connector.
  9. Connect the transfer case vent hose (1) to the transfer case (2).
  10. Install the transfer case bracket. Transfer Case Bracket Replacement
  11. Install the transmission mount strut bracket. Transmission Mount Strut Bracket Replacement (All Wheel Drive)
  12. GM4707737

    Install the front transmission mount through bolt. Transmission Mount Replacement (Front)

  13. Install the front exhaust pipe. Exhaust Front Pipe Replacement (LTG)Exhaust Front Pipe Replacement (LFY)
  14. Connect the two piece propeller shaft from the transfer case. Two-Piece Propeller Shaft Replacement
  15. Check power transfer case fluid level. Refer to Approximate Fluid Capacities , and Adhesives, Fluids, Lubricants, and Sealers .
