Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

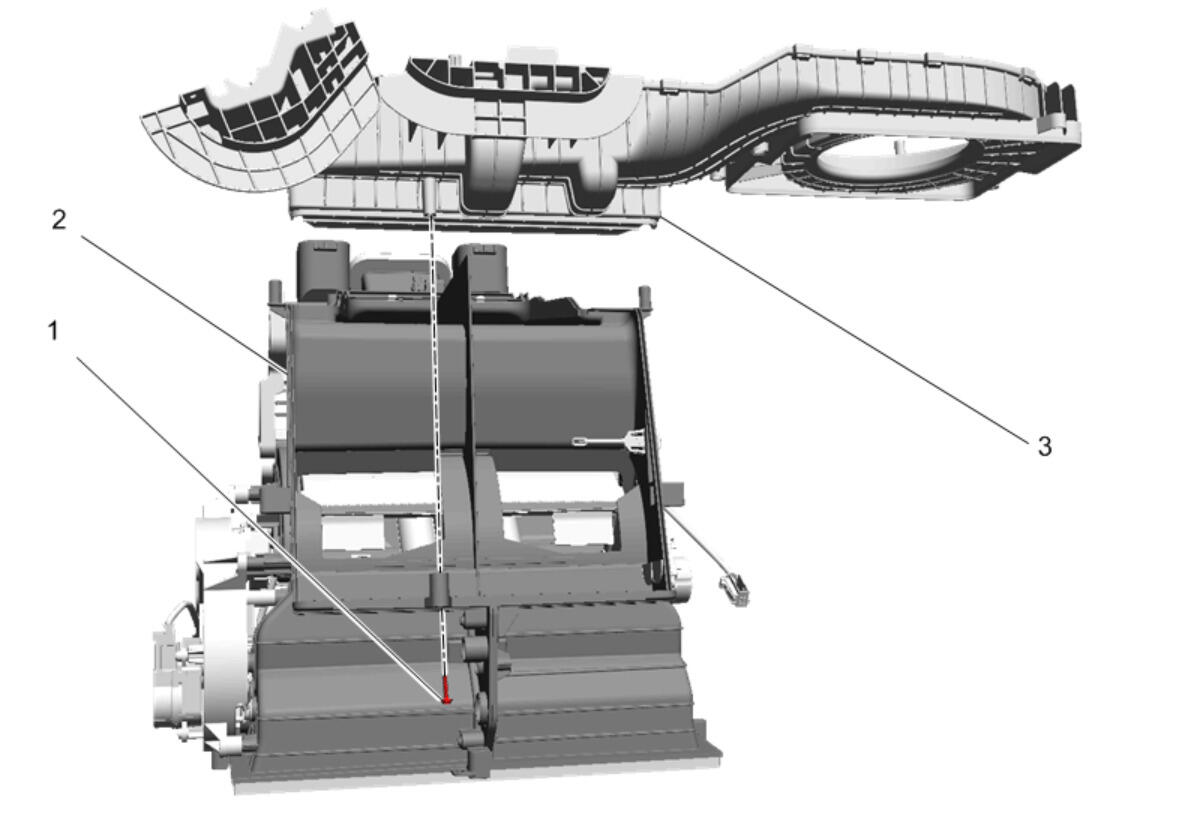

Air Distributor Case (2) @ Heater and Air Conditioning Evaporator and Blower Upper Case (3) - Install

CAUTION:

Refer to Fastener Caution .

Heater and Air Conditioning Evaporator and Blower Upper Case Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

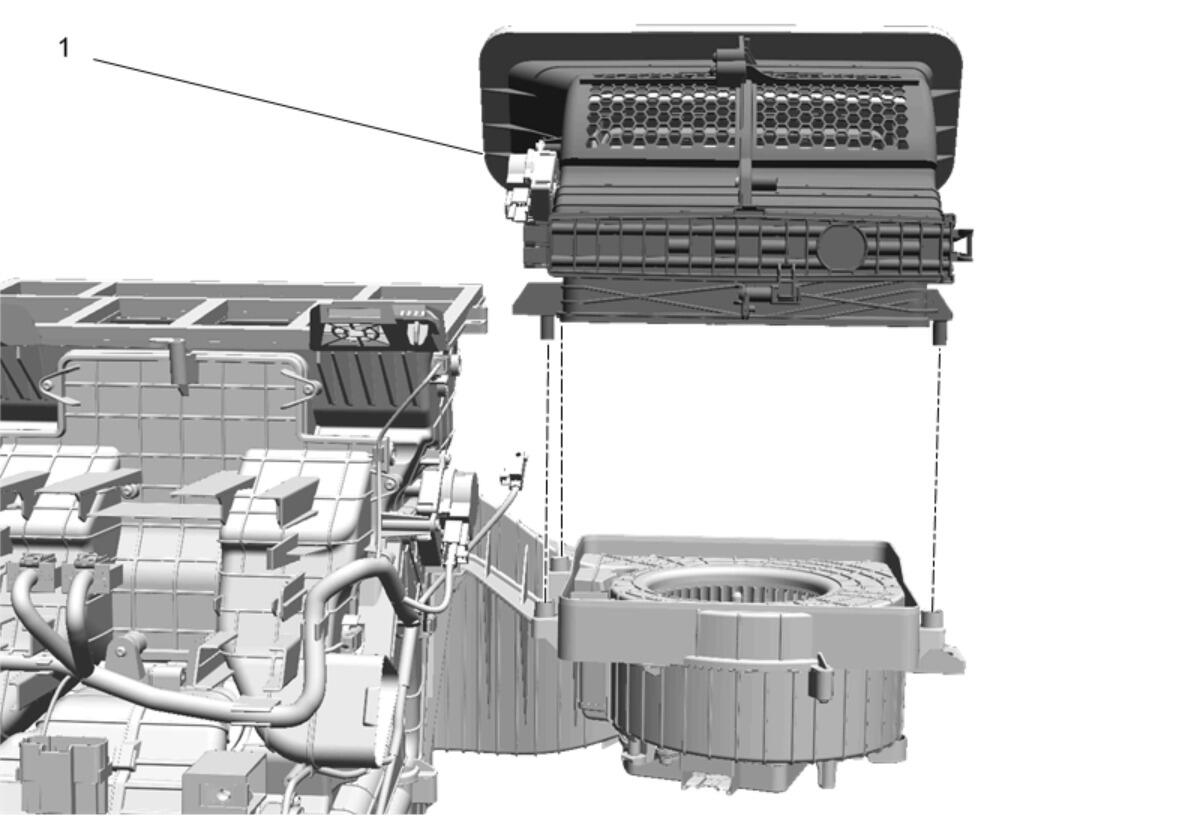

Air Inlet Housing (1) - Install - Air Inlet Housing Replacement
Courtesy of GENERAL MOTORS COMPANY

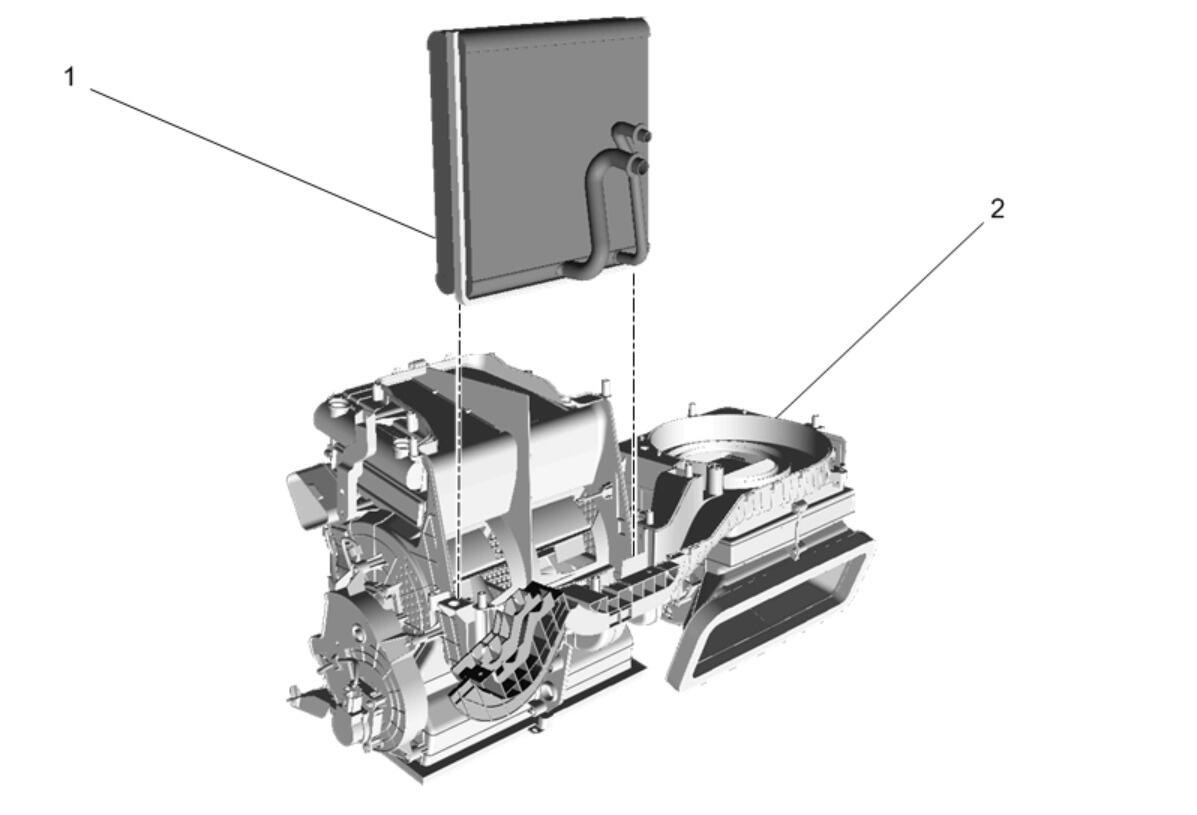

Air Conditioning Evaporator (1) @ Heater and Air Conditioning Evaporator and Blower Upper Case (2) - Install
Courtesy of GENERAL MOTORS COMPANY

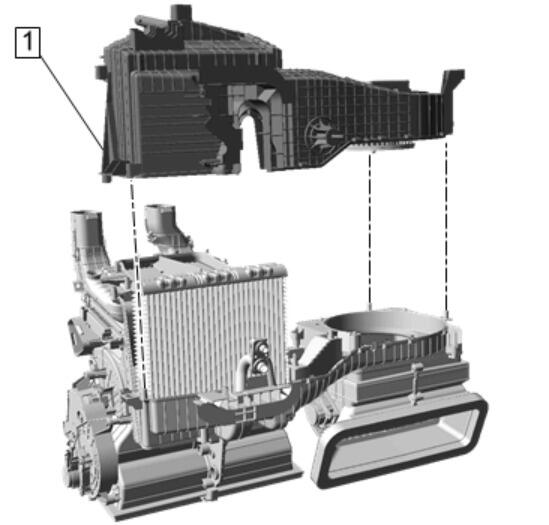

Heater and Air Conditioning Evaporator and Blower Lower Case (1) - Install
Courtesy of GENERAL MOTORS COMPANY

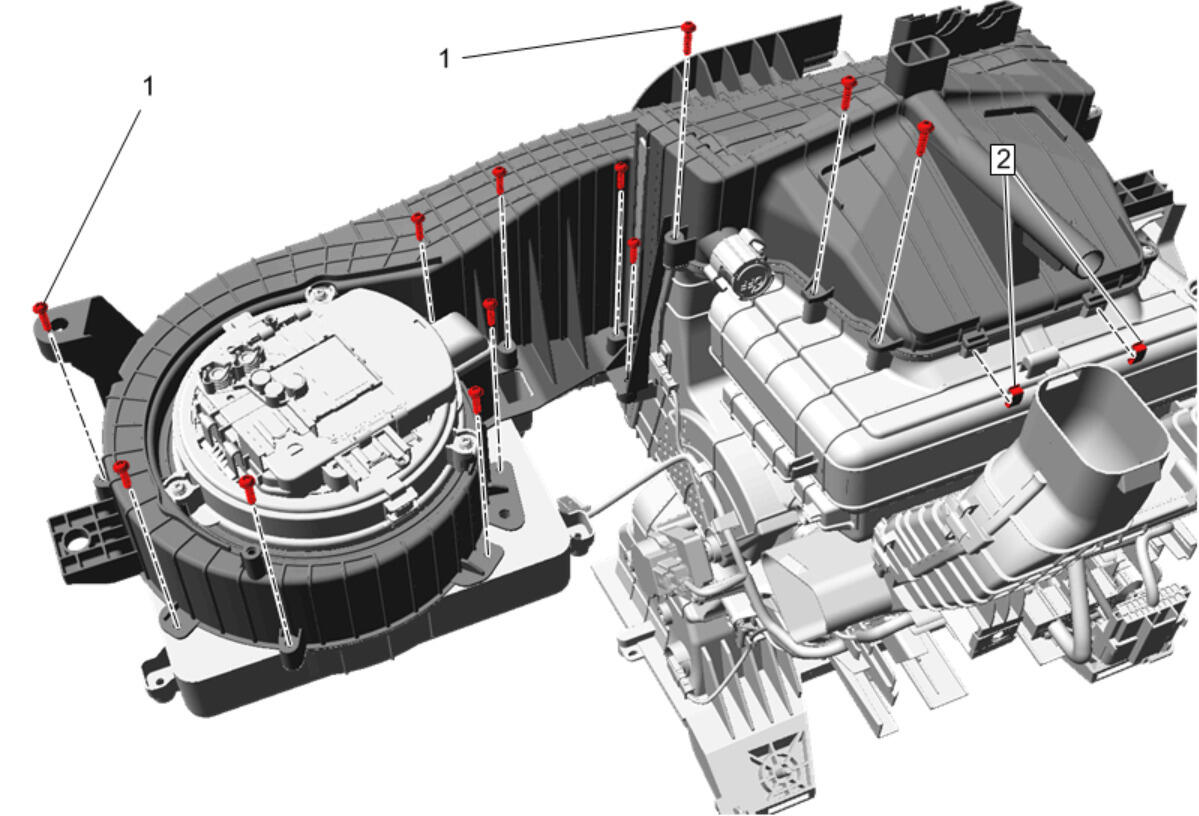

Heater and Air Conditioning Evaporator and Blower Lower Case Bolt (1) - Install and tighten [12x] 2.5 N.m (22 lb in)
Retainer Clip (2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

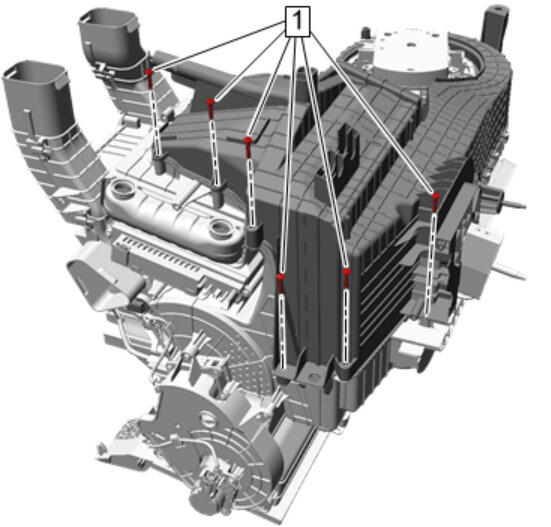

Heater and Air Conditioning Evaporator and Blower Lower Case Bolt (1) - Install and tighten [6x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

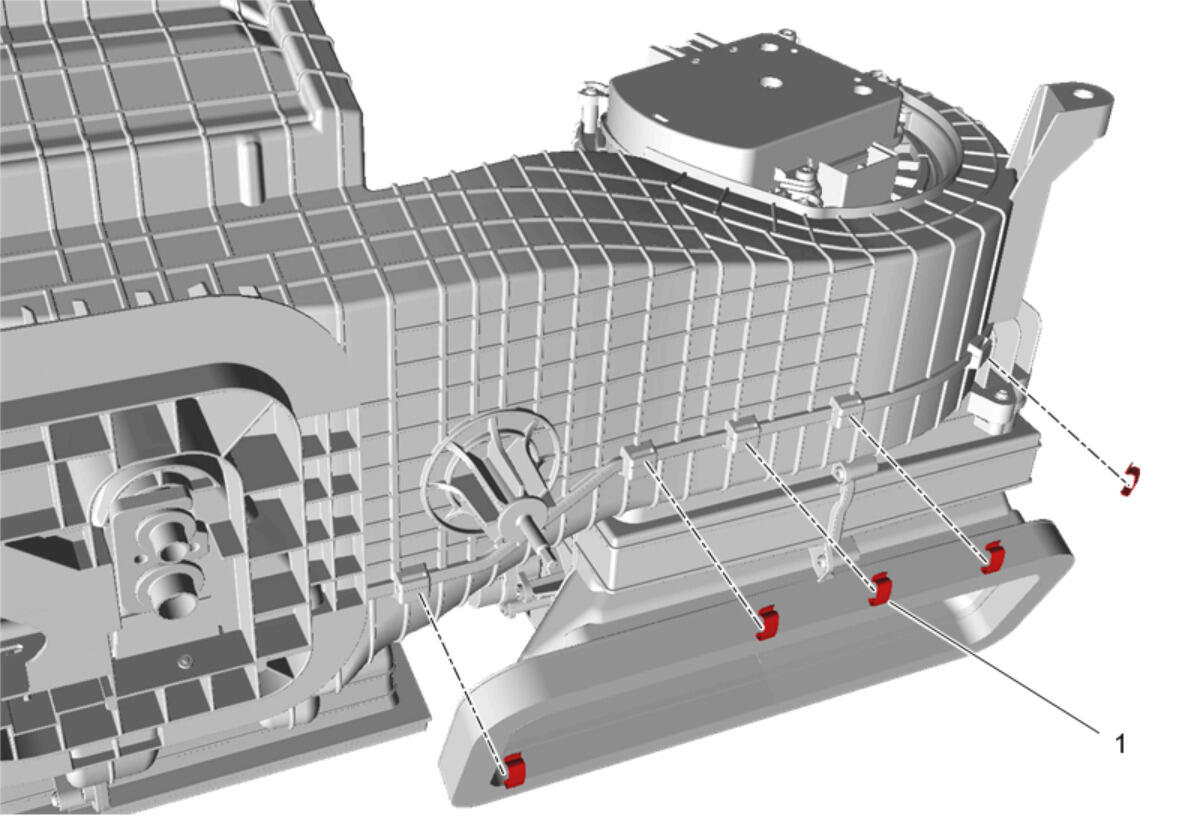

Retainer Clip (1) - Install [5x]
Courtesy of GENERAL MOTORS COMPANY

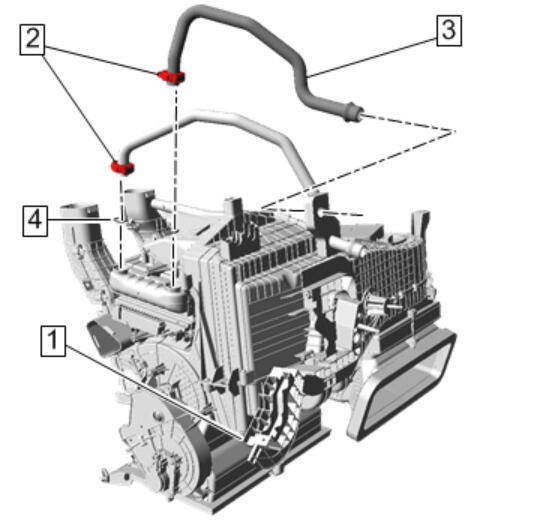

Heater Core Inlet Tube (3) - Install - Heater Core Inlet Tube Replacement (C69) , or Heater Core Inlet Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

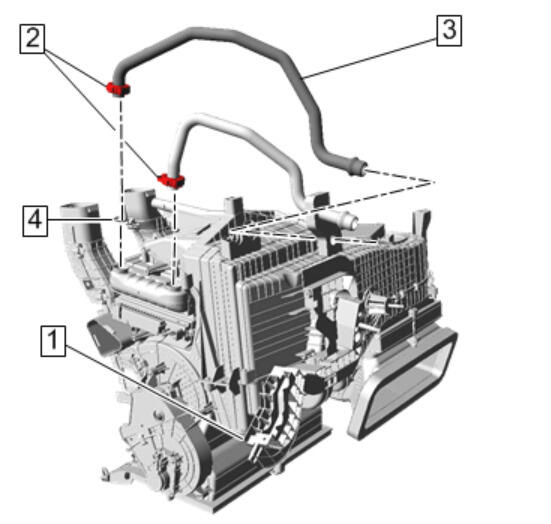

Heater Core Outlet Tube (3) - Install - Heater Core Outlet Tube Replacement (C69) , or Heater Core Outlet Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

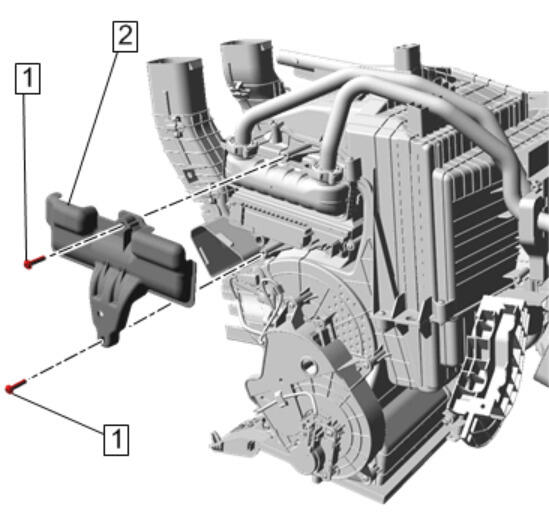

Heater Core Cover (2) - Install
Heater Core Cover Screw (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

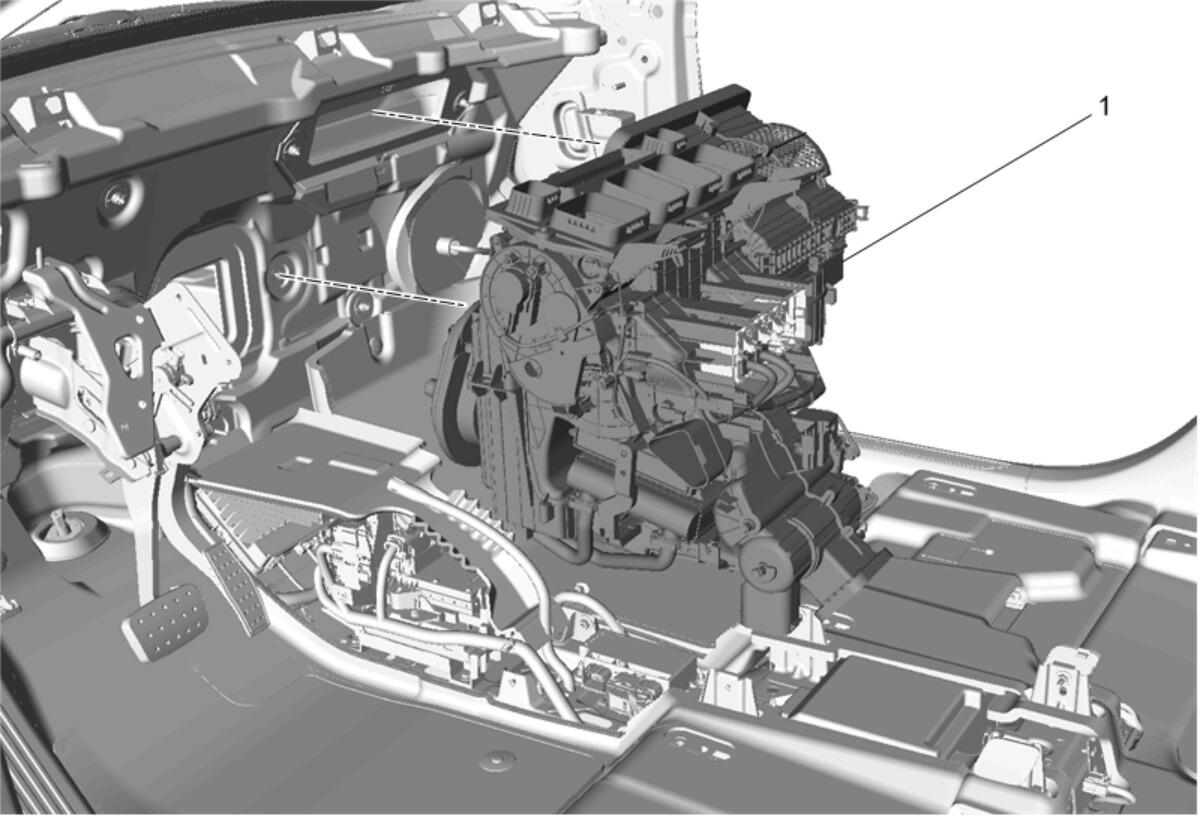

Heater and Air Conditioning Evaporator and Blower Module (1) - Install - Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (LFY) , or Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (LTG)
