Crankshaft Position Sensor Replacement (FWD)

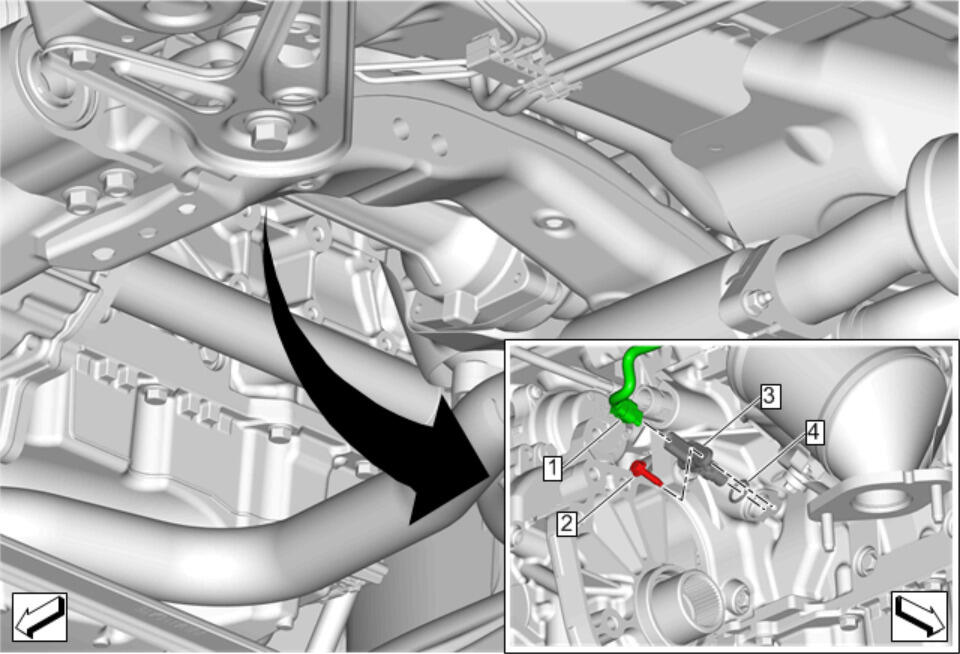

Callout	Component Name
Preliminary Procedure Transmission Mount Strut Bracket Replacement (Front Wheel Drive)
1	Electrical Connector
2	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Crankshaft Position Sensor Procedure Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
4	Crankshaft Position Sensor Seal Procedure Install a NEW seal. A NEW sensor will come with a NEW seal. Lubricate the NEW seal with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers
