Home >> Chevrolet >> 2018 >> Traverse LS, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Repair Instructions >> Rear Side Door Window Switch Replacement

Rear Side Door Window Switch Replacement

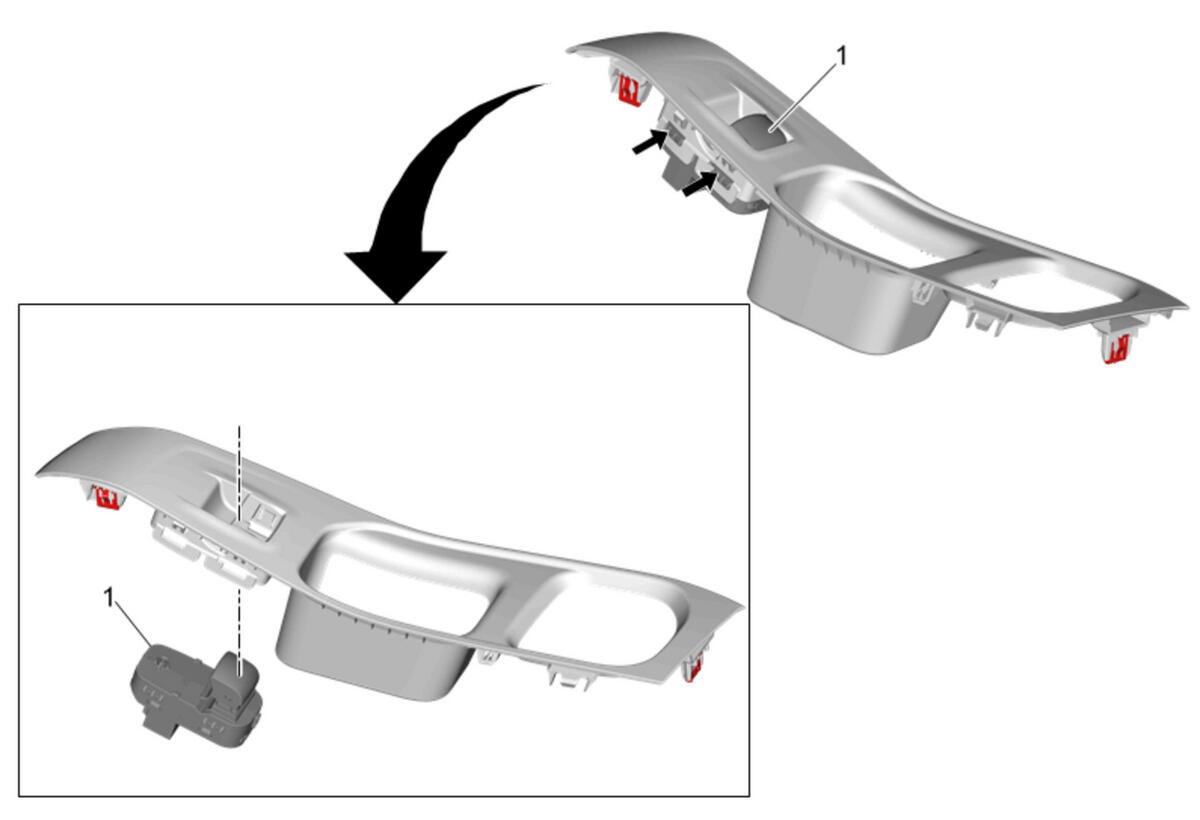

GM4753428Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Side Door Accessory Switch Mount Plate Replacement
1 Rear Side Door Window Switch
Procedure
Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.
