Rear Side Door Window Frame Front Applique Replacement

Courtesy of GENERAL MOTORS COMPANY

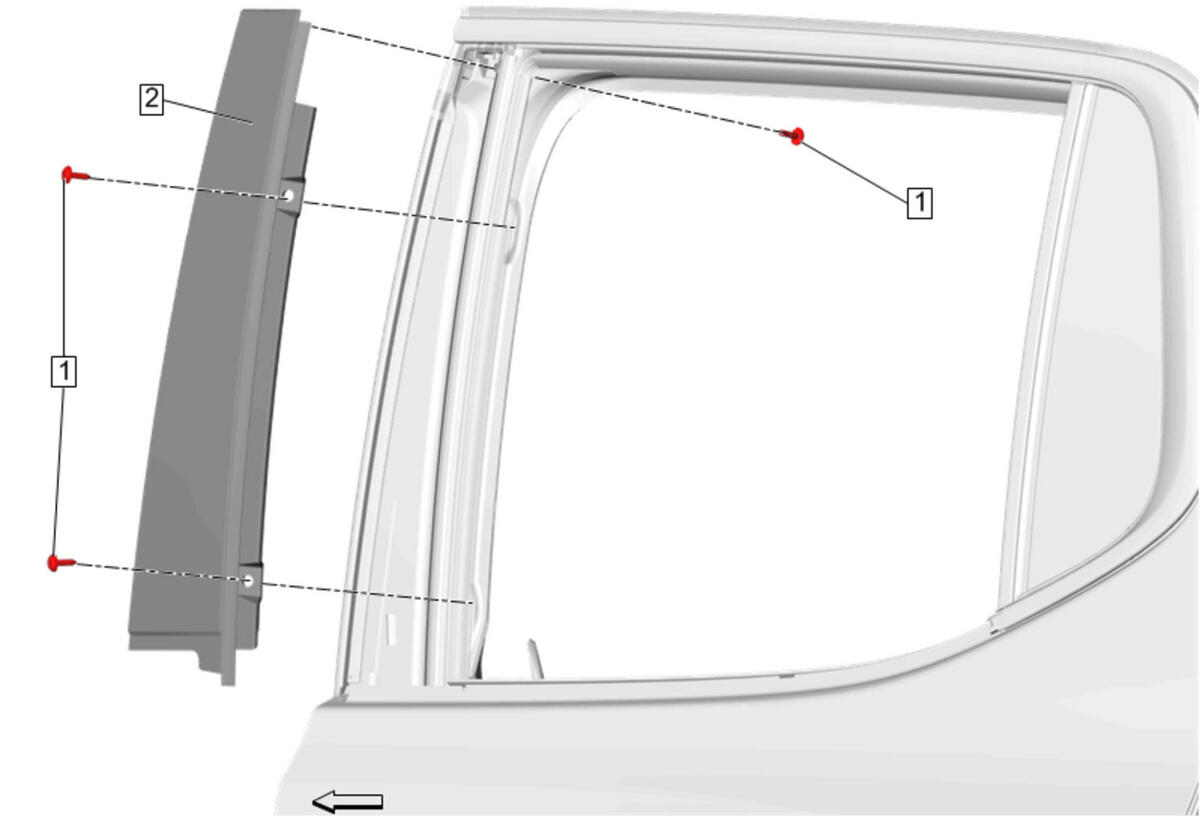

Callout	Component Name
Preliminary Procedures Rear Side Door Window Garnish Molding Replacement Rear Side Door Window Belt Reveal Molding Replacement
1	Rear Side Door Window Frame Applique Screw [3x] CAUTION: Refer to Fastener Caution . Procedure Pull weatherstrip away from the applique to access the screws. Tighten 2.5 N.m (22 lb in)
2	Rear Side Door Window Frame Front Applique

Callout

Component Name

Preliminary Procedures

Rear Side Door Window Frame Applique Screw [3x]

CAUTION:

Procedure
Pull weatherstrip away from the applique to access the screws.
Tighten
2.5 N.m (22 lb in)

Rear Side Door Window Frame Front Applique
